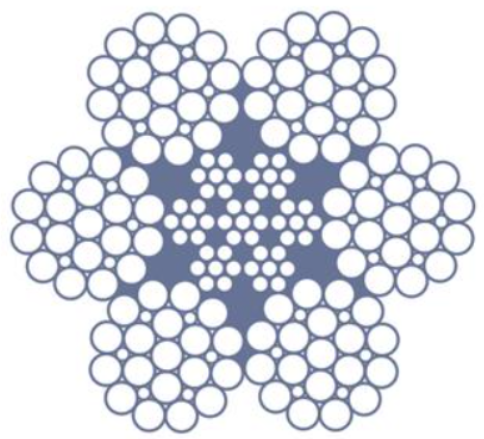

6x25Fi+IWRC B1960 Wire Rope
6x25Fi+IWRC B1960 Wire Rope
- Brand: Austlift
Our 6x25 steel core wire ropes have a flexible characteristic suitable for engineering, slings, derrick cranes or general purpose uses wherever flexible rope is required. Available by the metre or reel.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Metal fill factor 61.31%
- Manufactured from G1960 galvanised steel, in a black finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | GRADE | MBS | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| AL827085 | 8mm | 1770 | 40.3kN | 500m | 134kg |
| AL827090 | 9mm | 1770 | 51.0kN | 1000m | 348kg |
| AL827100 | 10mm | 1770 | 63.1kN | 1000m | 430kg |
| AL827115 | 11mm | 1770 | 76.3kN | 500m | 253kg |
| AL827125 | 12mm | 1770 | 90.8kN | 500m | 301kg |
| AL827120 | 12mm | 1770 | 90.8kN | 1000m | 602kg |
| AL827135 | 13mm | 1770 | 106kN | 500m | 354kg |
| AL827165 | 16mm | 1770 | 161kN | 500m | 550kg |
| AL827205 | 20mm | 1960 | 279kN | 500m | 835kg |
| AL827225 | 22mm | 1960 | 338kN | 500m | 1010kg |
| AL827265 | 26mm | 1770 | 426kN | 500m | 1415kg |
