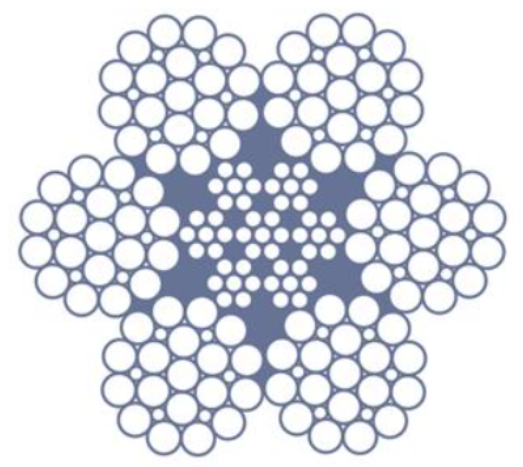

6×25 Fi+IWRC Wire Rope
6×25 Fi+IWRC Wire Rope
- Brand: Austlift
Our 6x25 steel core wire ropes have a flexible characteristic suitable for engineering, slings, derrick cranes or general purpose uses wherever flexible rope is required.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Metal fill factor 61.31%
- Manufactured from Grade 1960 galvanised steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | GRADE | MBS | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| AL826090 | 9mm | 1770 | 51.0kN | 1000m | 348kg |
| AL826100 | 10mm | 1770 | 63.1kN | 1000m | 430kg |
| AL826110 | 11mm | 1770 | 76.3kN | 1000m | 485kg |
| AL826125 | 12mm | 1770 | 90.8kN | 500m | 301kg |
| AL826135 | 13mm | 1770 | 106kN | 500m | 354kg |
| AL826145 | 14mm | 1770 | 124kN | 500m | 410kg |
| AL826165 | 16mm | 1770 | 161kN | 500m | 550kg |
| AL826205 | 20mm | 1960 | 279kN | 500m | 835kg |
| AL826225 | 22mm | 1960 | 338kN | 500m | 1010kg |
| AL826265 | 26mm | 1770 | 426kN | 500m | 1415kg |
