6x36SW+IWRC Black Wire Rope
- Brand: Austlift

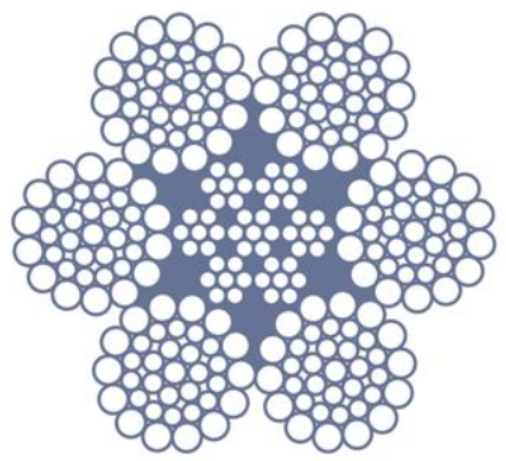

Our 6x36 steel core wire ropes have a flexible characteristics suitable for engineering slings, derrick cranes or general purpose uses wherever flexible rope is required. Available by the metre or reel.
- Australian Standard: AS 3569
Features
Industries
Documents
Features
- Flexible construction
- Metal fill factor 61.26%
- Manufactured from G1960 galvanised steel, finished in black
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | SIZE | GRADE | MBS | LENGTH | NET WEIGHT |
---|---|---|---|---|---|
AL837125 | 12mm | 1770 | 90.8kN | 500m | 301.0kg |
AL837135 | 13mm | 1770 | 106.0kN | 500m | 353.5kg |
AL837145 | 14mm | 1770 | 124.0kN | 500m | 421.5kg |
AL837165 | 16mm | 1770 | 161.0kN | 500m | 550.0kg |
AL837185 | 18mm | 1770 | 204.0kN | 500m | 690.0kg |
AL837205 | 20mm | 1770 | 252.0kN | 500m | 835.0kg |
AL837225 | 22mm | 1770 | 305.0kN | 500m | 1010.0kg |
AL837245 | 24mm | 1770 | 363.0kN | 500m | 1200.0kg |
AL837265 | 26mm | 1770 | 426.0kN | 500m | 1411.0kg |
AL837285 | 28mm | 1770 | 500m | ||
AL837325 | 32mm | 1770 | 645.0kN | 500m | 2137.5kg |
AL837380 | 38mm | 1770 | 500m | ||
AL837400 | 40mm | 1770 | 500m |
