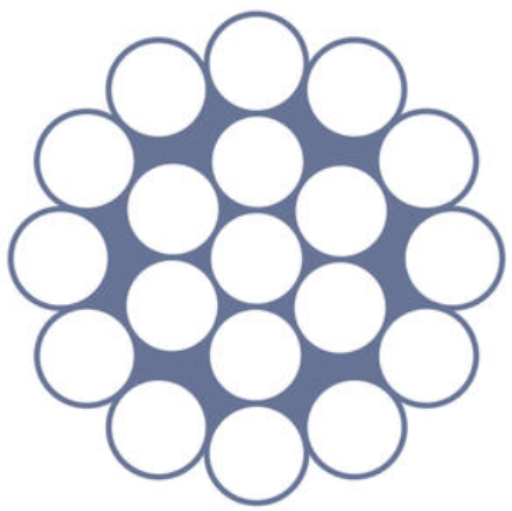

1×19 G304 Stainless Steel Wire Rope
1×19 G304 Stainless Steel Wire Rope
- Brand: Austlift
Our stainless steel 1 x19 wire ropes have a nonflexible characteristic suitable for all stationary rigging, mast stays and applications where the strand rope will not incur bending. Available by the metre or reel.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Rigid construction
- Corrosion resistant
- Manufactured from G304 stainless steel
Industries
- Civil
- Constructions
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE METRIC | SIZE IMPERIAL | GRADE | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| AL800123L | 1.2mm | 3/64″ | 304 | 3000m | 21.9kg |
| AL800163 | 1.6mm | 1/16″ | 304 | 305m | 3.81kg |
| AL800403 | 4.0mm | 5/32″ | 304 | 305m | 23.91kg |
| AL800483 | 4.8mm | 3/16mm | 304 | 305m | 34.86kg |
