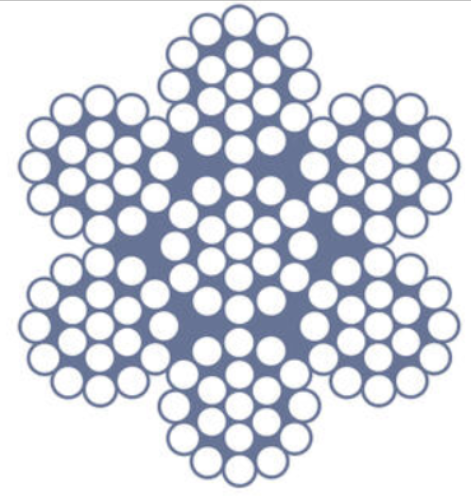

7×19 G304 Stainless Steel Wire Rope
Our stainless steel 7x19 wire ropes have a flexible characteristic suitable for running rigging, fishing nets, slings and any other where flexible rope is required for the application. Available by the metre or reel.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Rigid construction
- Corrosion resistant
- Metal fill factor 58.57%
- Manufactured from G304 stainless steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | SIZE METRIC | SIZE IMPERIAL | GRADE | LENGTH | NET WEIGHT |
---|---|---|---|---|---|
AL801503 | 2.4mm | 3/32″ | 304 | 305m | 7.26kg |
AL801504 | 3.0mm | 1/8″ | 304 | 305m | 11.00kg |
AL801505 | 3.2mm | 1/8″ | 304 | 305m | 9.80kg |
AL801506 | 4.0mm | 5/32″ | 304 | 305m | 20.00kg |
AL801507 | 4.8mm | 3/16″ | 304 | 305m | 29.00kg |
AL801508 | 5.0mm | 3/16″ | 304 | 305m | 30.00kg |
AL801510 | 6.0mm | 1/4″ | 304 | 305m | 45.00kg |
AL801512 | 8.0mm | 5/16″ | 304 | 305m | 76.35kg |
AL801515 | 10.0mm | 3/8″ | 304 | 305m | 120.00kg |
AL801516 | 12.0mm | 1/2″ | 304 | 305m | 171.70kg |
AL801518 | 14.0mm | 9/16″ | 304 | 305m | 234.00kg |
