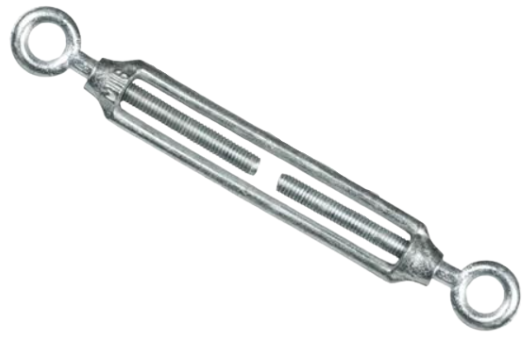

Eye/Eye Turnbuckle
Eye/Eye Turnbuckle
- Brand: Austlift
Ideal for use in conjunction with wire rope assemblies for light duty tensioning applications, this commercial turnbuckle is strong and versatile, with a threaded body and eye at both ends. Available in sizes from 5mm to 24mm.
Features
Industries
Documents
Features
- Zinc plated finish
- Corrosion resistant
- Constructed from malleable cast steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | NET WEIGHT |
|---|---|---|
| AL401005 | 5mm | 0.048kg |
| AL401006 | 6mm | 0.067kg |
| AL401008 | 8mm | 0.130kg |
| AL401010 | 10mm | 0.230kg |
| AL401012 | 12mm | 0.350kg |
| AL401016 | 16mm | 0.900kg |
| AL401020 | 20mm | 1.430kg |
| AL401022 | 22mm | 2.100kg |
| AL401025 | 24mm | 2.620kg |
Dimensions
| PRODUCT CODE | L | L1 | D | D2 |
|---|---|---|---|---|
| AL401005 | 70mm | 32mm | 5mm | 8mm |
| AL401006 | 80mm | 35mm | 6mm | 9mm |
| AL401008 | 105mm | 50mm | 8mm | 11mm |
| AL401010 | 130mm | 62mm | 10mm | 16mm |
| AL401012 | 140mm | 65mm | 12mm | 18mm |
| AL401016 | 178mm | 88mm | 16mm | 24mm |
| AL401020 | 215mm | 110mm | 20mm | 28mm |
| AL401022 | 240mm | 120mm | 22mm | 32mm |
| AL401025 | 255mm | 135mm | 24mm | 36mm |
