Hook/Eye Turnbuckle
Hook/Eye Turnbuckle
- Brand: Titan Lifting
Versatile and strong, this hook/eye turnbuckle is ideal for adjusting the tension of ropes, cables and tie rods in a variety of applications, including marine, lifting, rigging and industrial. Available in sizes from 6mm to 36mm and constructed from DIN 1480 material with a zinc plated finish, this turnbuckle has a hook and eye at either end, making it easy to attach to different objects.
Features
Industries
Documents
Features
- Threaded body
- Zinc plated finish
- DIN 1480 construction
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE (a) | NET WEIGHT |
|---|---|---|
| TLDIN14806HE | M6 | 0.11kg |
| TLDIN14808HE | M8 | 0.20kg |
| TLDIN148010HE | M10 | 0.28kg |
| TLDIN148012HE | M12 | 0.43kg |
| TLDIN148014HE | M14 | 0.61kg |
| TLDIN148016HE | M16 | 1.00kg |
| TLDIN148020HE | M20 | 1.60kg |
| TLDIN148022HE | M22 | 2.20kg |
| TLDIN148024HE | M24 | 2.80kg |
| TLDIN148030HE | M30 | 4.10kg |
| TLDIN148033HE | M33 | 6.00kg |
| TLDIN148036HE | M36 | 8.30kg |

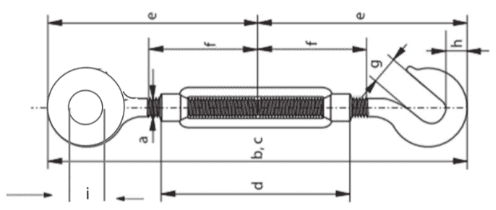

Dimensions
| PRODUCT CODE | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|
| TLDIN14806HE | 184mm | 270mm | 110mm | 92mm | 55mm | 8mm | 15mm | 9mm |
| TLDIN14808HE | 200mm | 280mm | 110mm | 100mm | 57mm | 10.5mm | 15mm | 10mm |
| TLDIN148010HE | 234mm | 323mm | 125mm | 117mm | 68mm | 13mm | 11mm | 14mm |
| TLDIN148012HE | 260mm | 343mm | 125mm | 130mm | 70mm | 16mm | 13mm | 16mm |
| TLDIN148014HE | 278mm | 368mm | 140mm | 139mm | 75mm | 18mm | 15mm | 18mm |
| TLDIN148016HE | 322mm | 438mm | 170mm | 161mm | 88mm | 20mm | 17mm | 22mm |
| TLDIN148020HE | 382mm | 514mm | 200mm | 191mm | 105mm | 21mm | 21mm | 24mm |
| TLDIN148022HE | 456mm | 601mm | 220mm | 228mm | 118mm | 24mm | 28mm | 27mm |
| TLDIN148024HE | 496mm | 673mm | 255mm | 248mm | 135mm | 26mm | 33mm | 27mm |
| TLDIN148030HE | 550mm | 715mm | 255mm | 275mm | 135mm | 34mm | 35mm | 31mm |
| TLDIN148033HE | 600mm | 799mm | 295mm | 300mm | 148mm | 38mm | 40mm | 36mm |
| TLDIN148036HE | 640mm | 825mm | 295mm | 320mm | 158mm | 46mm | 45mm | 38mm |
