250kg Flat Material Lifting Magnet
250kg Flat Material Lifting Magnet
- Brand: Townley
- Capacity: 0.25t

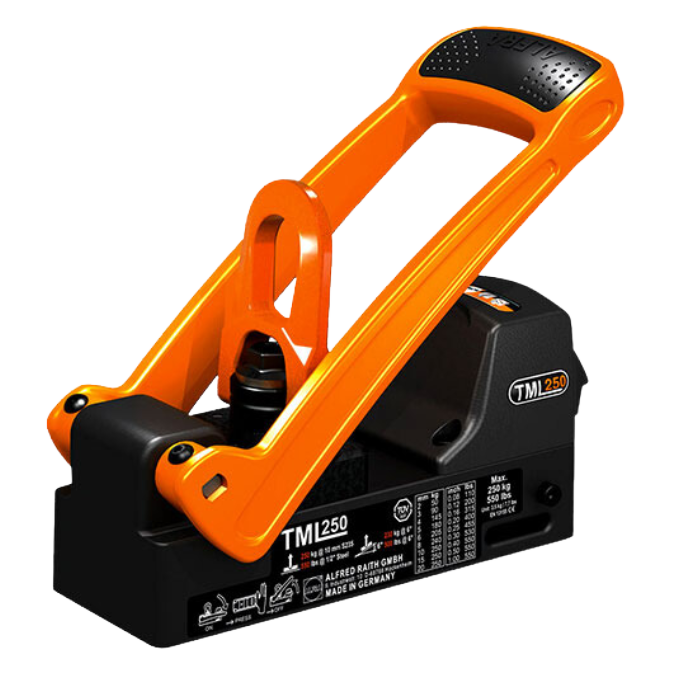

With an ergonomic lever that allows for easy one-handed operation, the Alfra TML-250 lifting magnet provides a safe and secure solution for handling, lifting or moving flat steel. With a 3:1 safety factor, the Alfra TML-250 lifting magnet boasts a maximum lifting capacity of 250kg on 10mm thick steel (S235) and 90kg capacity for materials as thin as 2mm. A wear-resistant magnetic contact area, constructed from hardened steel with a TiN coating, guarantees durability and minimises damage to both the magnet and the lifted material, whilst the 360° rotating and 180° pivoting load swivel ensures versatility even under full load.
Features
Industries
Documents
Features
- 3:1 safety factor
- Ergonomic activation lever
- 250kg load bearing capacity
- 360° rotable and 180° pivotable load swivel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | BREAKAWAY FORCE | MIN. MATERIAL THICKNESS | MAGNETIC CONTACT AREA | NET WEIGHT |
|---|---|---|---|---|---|
| TNTML250 | 250kg | 750kg on 10mm steel S235 | 2mm | 135mm x 65mm | 3.5kg |
Dimensions
| PRODUCT CODE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| TNTML250 | 240mm | 91mm | 191mm |
