G80 Webbing Sling Connector Type WL
G80 Webbing Sling Connector Type WL
- Brand: Austlift
- Capacity: 2.0t to 8.0t

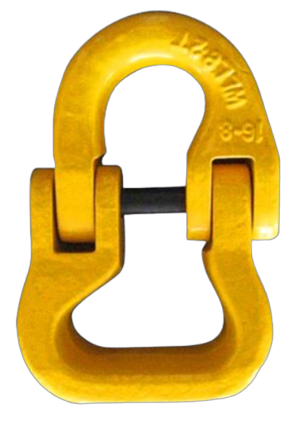

Safe and reliable, our webbing sling connectors (hammerlocks) are ideal for connecting two webbing slings together to create a longer or stronger sling for lifting and rigging applications. Constructed from high quality steel and available in a range of sizes, these connectors can be quickly and easily connected and disconnected for efficient lifting.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Constructed from G80 steel
- Test certificate available on request
- Marked with chain size, batch number and grade
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | MBF | NET WEIGHT |
|---|---|---|---|---|
| AL104208 | 2.0t | 7/8mm | 8.0t | 0.30kg |
| AL104210 | 3.2t | 10mm | 12.6t | 0.68kg |
| AL104213 | 5.3t | 13mm | 21.2t | 1.47kg |
| AL104216 | 8.0t | 16mm | 32.0t | 2.30kg |
Dimensions
| PRODUCT CODE | A | B | K | W | G | E |
|---|---|---|---|---|---|---|
| AL104208 | 9.5mm | 61.5mm | 63.7mm | 40mm | 24.0mm | 20mm |
| AL104210 | 11.0mm | 66.0mm | 83.0mm | 39mm | 30.5mm | 24mm |
| AL104213 | 16.5mm | 88.0mm | 93.7mm | 55mm | 36.8mm | 28mm |
| AL104216 | 19.5mm | 106.0mm | 118.0mm | 65mm | 44.0mm | 39mm |
