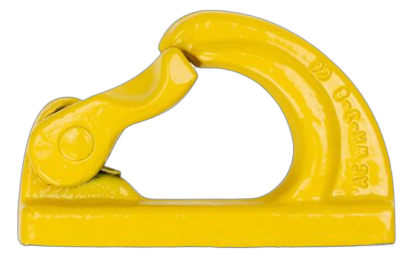

G80 Weld On Hook WH
G80 Weld On Hook WH
- Capacity: 1.1t to 12.5t
Designed with safety, versatility and durability in mind, our Weld On Hooks are made from Grade 80 alloy steel, and feature a strong and reliable locking mechanism that ensure loads stay securely in place and accidental unhooking is prevented. Easy to install, the Weld On Hook can be welded directly to the booms of bucket or crane loaders, and may also be used as a fixed anchor point for spreader beam attachments or load restraint applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- 4:1 safety factor
- Marked with W.L.L. and Grade
- Manufactured from G80 alloy steel
- Safety latch allows axial loading and positive locking
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL103801 | 1.1t | 6mm | 0.35kg |
| AL103802 | 2.0t | 7/8mm | 0.55kg |
| AL103803 | 3.2t | 10mm | 0.87kg |
| AL103805 | 5.3t | 13mm | 1.75kg |
| AL103808 | 8.0t | 16mm | 3.20kg |
| AL103812 | 12.5t | 22mm | 6.16kg |

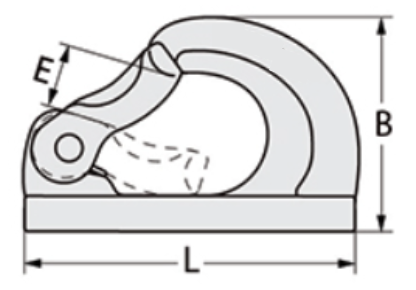

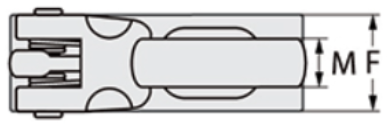

Dimensions
| PRODUCT CODE | B | E | L |
|---|---|---|---|
| AL103801 | 53.0mm | 18mm | 87.0mm |
| AL103802 | 63.5mm | 26mm | 112.0mm |
| AL103803 | 75.0mm | 30mm | 127.5mm |
| AL103805 | 92.5mm | 35mm | 160.0mm |
| AL103808 | 106.0mm | 40mm | 180.0mm |
| AL103812 | 140.0mm | 51mm | 236.0mm |
