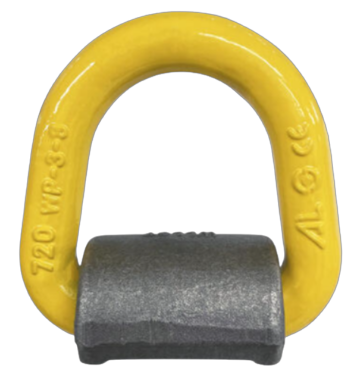

G80 Weld On Lifting Point WP
- Brand: Austlift
- Capacity: 1.0t to 8.0t
Our versatile G80 weld on lifting points (WP type) can be welded on to any carbon steel surface as a lifting point, fixed as an anchor point for spreader beam attachments or as an anchor point for load restraint applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- 4:1 safety factor
- Manufactured from G80 alloy steel
- Marked with chain size, batch number and W.L.L.
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Ports
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | NET WEIGHT |
---|---|---|
AL104001 | 1.0t | 0.55kg |
AL104003 | 3.0t | 0.90kg |
AL104005 | 5.0t | 1.80kg |
AL104008 | 8.0t | 2.50kg |
Dimensions
PRODUCT CODE | B | D | C | C1 | W |
---|---|---|---|---|---|
AL104001 | 55mm | 14.0mm | 35mm | 95.7mm | 50.0mm |
AL104003 | 64mm | 17.0mm | 50mm | 99.0mm | 58.0mm |
AL104005 | 70mm | 22.0mm | 70mm | 137.0mm | 64.0mm |
AL104008 | 69mm | 26.5mm | 86mm | 144.0mm | 66.5mm |
