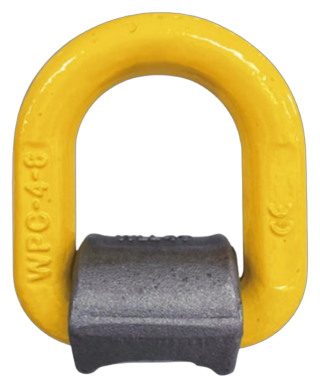

G80 Weld On Point Compact Type
G80 Weld On Point Compact Type
- Brand: Austlift
- Capacity: 1.0t to 8.0t
Create a secure attachment point for lifting heavy loads with this robust and versatile Weld On Point (Compact Type). This Weld On Point can be welded onto any carbon steel surfaces as a lifting point, fixed anchor point for spreader beam attachments or as an anchor point for load restraint applications
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Conforms to AS3776
- Manufactured from high tensile alloy steel
- Individual test certificates available upon request
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| AL103901 | 1.0t | 0.40kg |
| AL103902 | 2.0t | 0.48kg |
| AL103904 | 4.0t | 0.69kg |
| AL103906 | 6.0t | 1.50kg |
| AL103909 | 9.0t | 2.50kg |
| AL103915 | 15.0t | 5.79kg |
Dimensions
| PRODUCT CODE | A (MAX) | B (MAX) | H (MIN) |
|---|---|---|---|
| AL103901 | 39.0mm | 32.0mm | 7mm |
| AL103902 | 42.0mm | 36.0mm | 8mm |
| AL103904 | 44.5mm | 39.0mm | 10mm |
| AL103906 | 53.0mm | 49.5mm | 15mm |
| AL103909 | 68.0mm | 59.0mm | 18mm |
| AL103915 | 91.0mm | 76.0mm | 19mm |
