G80 Chain Sling – 10mm 2 Leg
G80 Chain Sling – 10mm 2 Leg
- Capacity: 3.2t to 5.5t

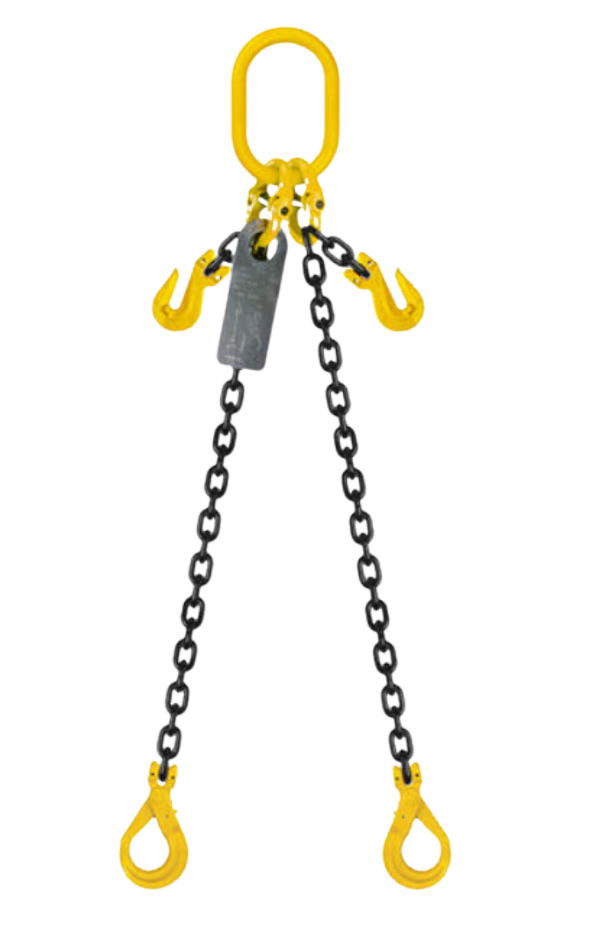

This Grade 80 10mm 2 leg chain sling is constructed from G80 alloy steel for strength and durability. Featuring a master link, two clevis type grab shorteners and two clevis self locking hooks, this robust G80 chain sling is ideal for various loads and provides versatile lifting across numerous applications.
- Australian Standard: AS3775
Features
Industries
Documents
Features
- Clevis Self Locking Hook
- Clevis Type Grab Shortener
- Break load limit 4x the load indicated
- Proof tested to 2 x Working Load Limit
- Supplied with individual test certificate and stainless steel safety tag
Industries
- Construction
- Engineering
- Mining
- Production
- Ship Building
Specifications
Dimensions
Specifications

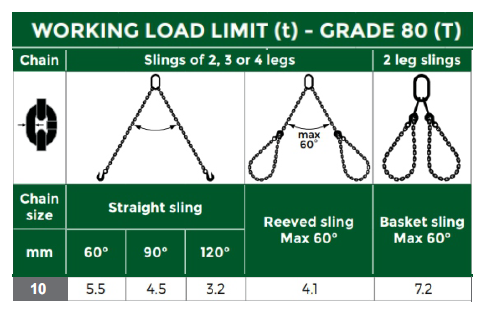

| PRODUCT CODE | SLING LENGTH | SHORTENING HOOK | END FITTING | NET WEIGHT | DIRECT LOAD | ||
|---|---|---|---|---|---|---|---|
| 60° | 90° | 120° | |||||
| AL951021 | 1m | GC-10-8 | LC-10-8 | 9.16kg | 5.5t | 4.5t | 3.2t |
| AL951022 | 2m | GC-10-8 | LC-10-8 | 13.58kg | 5.5t | 4.5t | 3.2t |
| AL951023 | 3m | GC-10-8 | LC-10-8 | 18.00kg | 5.5t | 4.5t | 3.2t |
| AL951024 | 4m | GC-10-8 | LC-10-8 | 22.42kg | 5.5t | 4.5t | 3.2t |
| AL951025 | 5m | GC-10-8 | LC-10-8 | 26.84kg | 5.5t | 4.5t | 3.2t |
| AL951026 | 6m | GC-10-8 | LC-10-8 | 31.26kg | 5.5t | 4.5t | 3.2t |
