Grade 100 Lifting Chain
Grade 100 Lifting Chain
- Capacity: 1.4t to 16.0t

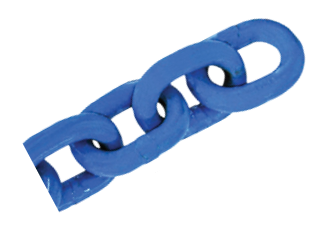

Robust and versatile, our Grade 100 Lifting Chain is manufactured from high quality hardened and tempered alloy steels and coated with a blue electrophoretic finish, making it for ideal chain slings, as well as lifting and rigging applications. Stamped at 50cm intervals for traceability and clear identification, and available in sizes ranging from 6mm to 20mm, our Grade 100 Lifting Chain provides proven durability and dependability in the most demanding industrial environments. Compliant with AS 2321, this Grade 100 Lifting Chain delivers excellent strength to weight performance, offering a 25% higher lifting capacity than Grade 80 lifting chain, ensuring a safe and reliable solution for even the most demanding lifts.
- Australian Standard: AS 2321
Features
Industries
Documents
Features
- Constructed from alloy steel
- Coated with blue electrophoretic finish
- 25% higher lifting capacity than G80 chain
Industries
- Construction
- Engineering
- Mining
- Production
- Rigging
Documents
Specifications

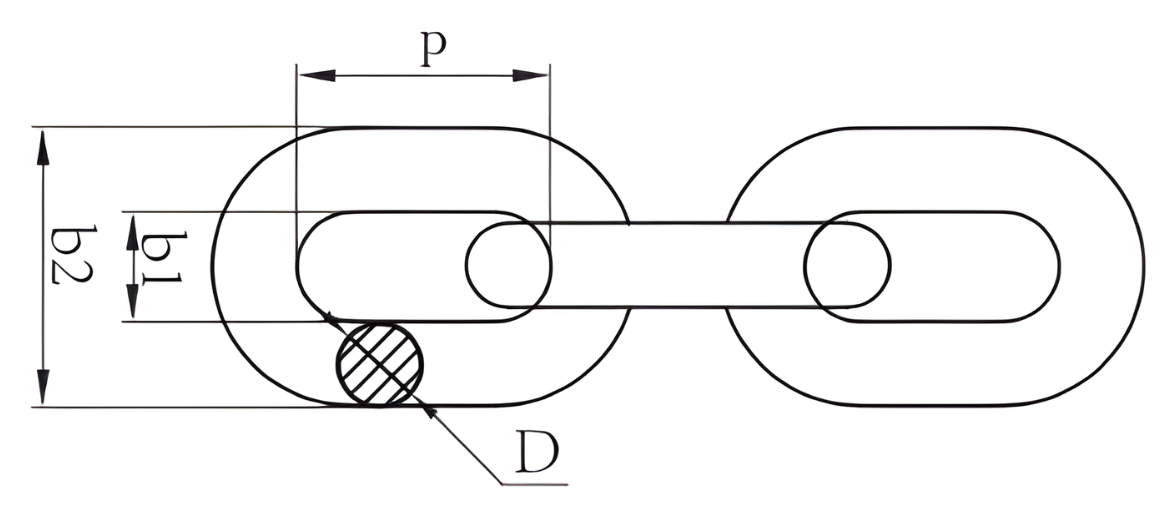

Dimensions
Specifications
| PRODUCT CODE | SIZE | W.L.L. | D (mm) | p (mm) | b1 (mm) min | b2 (mm) max |
|---|---|---|---|---|---|---|
| CHAING100-06 | 6mm | 1.4t | 6±0.2 | 18 | 9±0.2 | 21 |
| CHAING100-08 | 8mm | 2.5t | 8±0.2 | 24 | 11.5±0.2 | 27.5 |
| CHAING100-10 | 10mm | 4.0t | 10±0.2 | 30 | 14.5±0.2 | 34 |
| CHAING100-13 | 13mm | 6.7t | 13±0.2 | 39 | 19±0.2 | 45 |
| CHAING100-16 | 16mm | 10.0t | 16±0.2 | 48 | 23.5±0.2 | 55.5 |
| CHAING100-20 | 20mm | 16.0t | 20±0.2 | 60 | 28±0.2 | 68 |
