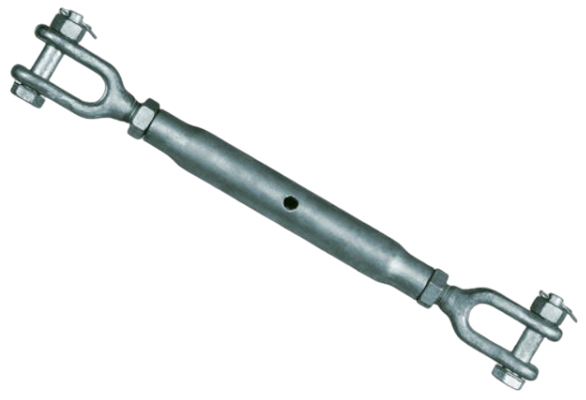

Grade S Jaw/Jaw Rigging Screw
Grade S Jaw/Jaw Rigging Screw
- Brand: Austlift
- Capacity: 0.5t to 10.0t
Suitable for industrial lifting applications, our Grade S Jaw/Jaw Rigging Screws are used for straight or in line tensioning on conjunction with wire rope and/or chain assemblies when heavy duty straining and lifting applications are required.
- Australian Standard: AS 2319
Features
Industries
Documents
Features
- Individually proof tested
- Proof tested to 2 x W.L.L.
- Minimum break force of 6 x W.L.L.
- Manufactured from Grade S high tensile material
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | GRADE | W.L.L. | NET WEIGHT |
|---|---|---|---|---|
| AL407110 | 10mm | S | 0.8t | 0.48kg |
| AL407112 | 12mm | S | 1.2t | 0.98kg |
| AL407116 | 16mm | S | 2.0t | 1.40kg |
| AL407120 | 20mm | S | 3.2t | 2.30kg |
| AL407124 | 24mm | S | 5.0t | 4.85kg |
| AL407127 | 27mm | S | 6.3t | 5.75kg |
| AL407133 | 33mm | S | 10.0t | 8.08kg |
| AL407139 | 39mm | S | 12.0t | 13.50kg |
| AL407145 | 45mm | S | 16.0t | 18.60kg |
| AL407148 | 48mm | S | 20.0t | 23.00kg |
Dimensions
| PRODUCT CODE | A | C | D | E | F | N | O |
|---|---|---|---|---|---|---|---|
| AL407110 | 152mm | 124mm | 21mm | 11mm | 8mm | 235mm | 345mm |
| AL407112 | 229mm | 183mm | 25mm | 19mm | 10mm | 350mm | 525mm |
| AL407116 | 229mm | 194mm | 27mm | 22mm | 12mm | 390mm | 530mm |
| AL407120 | 229mm | 204mm | 34mm | 22mm | 16mm | 405mm | 540mm |
| AL407124 | 356mm | 292mm | 42mm | 32mm | 22mm | 565mm | 820mm |
| AL407127 | 356mm | 294mm | 45mm | 32mm | 22mm | 590mm | 805mm |
| AL407133 | 381mm | 320mm | 57mm | 38mm | 24mm | 640mm | 870mm |
| AL407139 | 407mm | 356mm | 63.5mm | 47mm | 32mm | 700mm | 960mm |
| AL407145 | 407mm | 378mm | 70mm | 51mm | 36mm | 755mm | 975mm |
| AL407148 | 407mm | 404mm | 76mm | 51mm | 42mm | 790mm | 975mm |
