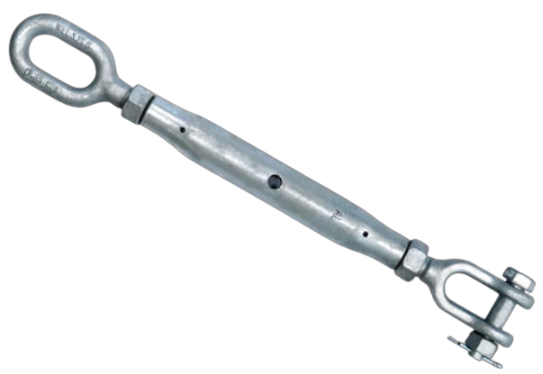

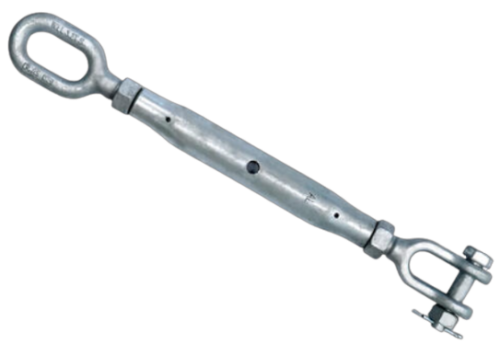

Grade S Eye/Jaw Rigging Screw
Grade S Eye/Jaw Rigging Screw
- Brand: Austlift
- Capacity: 1.2t to 12.0t
Suitable for industrial lifting applications, our Grade S Eye/Jaw Rigging Screws are used for straight or in line tensioning in conjunction with wire rope and/or chain assemblies when heavy duty straining and lifting applications are required.
- Australian Standard: AS2319
Features
Industries
Documents
Features
- Individually proof tested
- Proof tested to 2 x W.L.L.
- Minimum break force of 6 x W.L.L.
- Manufactured from Grade P high tensile material
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | GRADE | W.L.L. | NET WEIGHT |
|---|---|---|---|---|
| AL407212 | 12mm | S | 1.2t | 0.98kg |
| AL407216 | 16mm | S | 2.0t | 1.40kg |
| AL407220 | 20mm | S | 3.2t | 2.10kg |
| AL407224 | 24mm | S | 5.0t | 4.85kg |
| AL407233 | 33mm | S | 10.0t | 8.08kg |

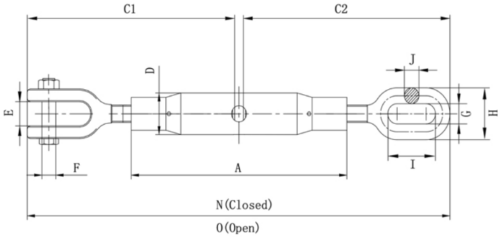

Dimensions
| PRODUCT CODE | A | D | E | F | G | H | I | C1 | C2 | J | N | O |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AL407212 | 229mm | 25mm | 19mm | 11mm | 14mm | 36mm | 36mm | 183mm | 10mm | 10mm | 353mm | 529mm |
| AL407216 | 229mm | 27mm | 22mm | 14mm | 18mm | 46mm | 40mm | 194mm | 12.7mm | 12.7mm | 393mm | 539mm |
| AL407220 | 229mm | 34mm | 22mm | 16mm | 22mm | 54mm | 50mm | 223mm | 16mm | 16mm | 420mm | 560mm |
| AL407224 | 356mm | 42mm | 32mm | 19mm | 25mm | 63mm | 51mm | 292mm | 22mm | 22mm | 566mm | 826mm |
| AL407233 | 381mm | 51mm | 38mm | 25mm | 34mm | 84mm | 64mm | 320mm | 25mm | 25mm | 635mm | 870mm |
