600kg Magnetic Clamp
600kg Magnetic Clamp
- Brand: Townley
- Capacity: 0.60t

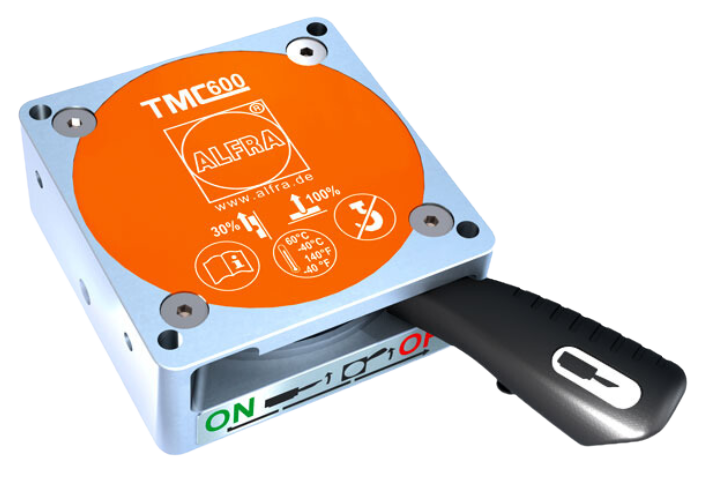

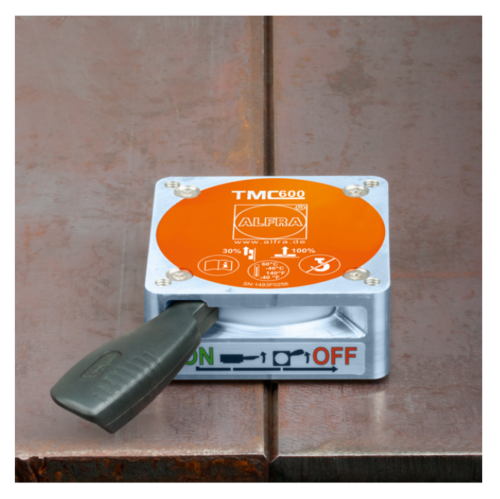

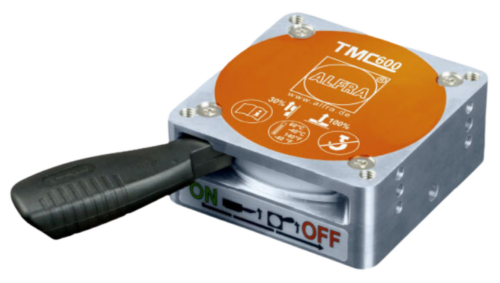

With a high power to weight ratio and a breakaway force of 600kg, the Alfra TMC 600 magnetic clamp offers a secure and efficient solution when manoeuvring steel sheets as thin as 2mm - even in vertical applications. Featuring M5 and M6 connection threads on the top and both sides of the housing for the easy attachment of accessories, plus a TiN coated wear resistant magnetic contact area for increased durability, the Alfra TMC 600 is a highly versatile magnetic clamp ideal for a wide range of uses.
Features
Industries
Documents
Features
- 600kg holding force
- M5 and M6 connection threads for accessory attachment
- TiN-Coated wear resistant magnetic contact area for increased durability
Industries
- Civil
- Construction
- Engineering
- Infrastructure
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY | BREAKAWAY FORCE | MIN. MATERIAL THICKNESS | NET WEIGHT |
|---|---|---|---|---|
| TNTMC600 | 600kg | 600kg on 10mm steel S235 | 2mm | 2.7kg |

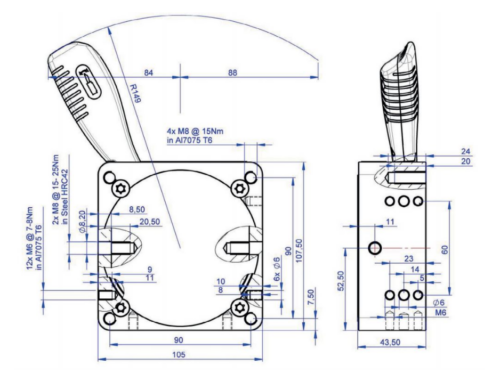

Dimensions
| PRODUCT CODE | LENGTH | WIDTH |
|---|---|---|
| TNTMC600 | 108mm | 105mm |
