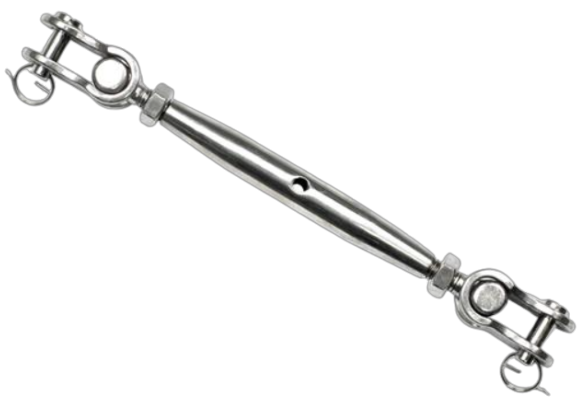

SS Toggle/Toggle G316 Rigging Screw
SS Toggle/Toggle G316 Rigging Screw
- Brand: Austlift
Combine durability and versatility with our G316 Stainless Steel Rigging Screws. Featuring a clevis toggle and toggle bottle screw, these corrosion resistant screws provide reliable and secure tensioning solutions for various applications including architectural, balustrade rigging and marine.
Please note these screws are NOT suitable for lifting applications.
Features
Industries
Documents
Features
- Manufactured from Grade 316 stainless steel
- Clevis toggle and toggle design ensures secure tensioning
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE 9 (d) | GRADE | NET WEIGHT |
|---|---|---|---|
| AL720908 | M8 | 316 | 0.214kg |
| AL720910 | M10 | 316 | 0.48kg |
| AL720912 | M12 | 316 | 0.65kg |
| AL720916 | M16 | 316 | 1.33kg |
| AL720920 | M20 | 316 | 2.23kg |
Dimensions
| PRODUCT CODE | L | L1 | A | D |
|---|---|---|---|---|
| AL720908 | 195mm | 105mm | 9mm | 8mm |
| AL720910 | 223mm | 125mm | 12mm | 9mm |
| AL720912 | 275mm | 150mm | 13mm | 12mm |
| AL720916 | 405mm | 190mm | 18mm | 16mm |
| AL720920 | 472mm | 210mm | 22mm | 19mm |
