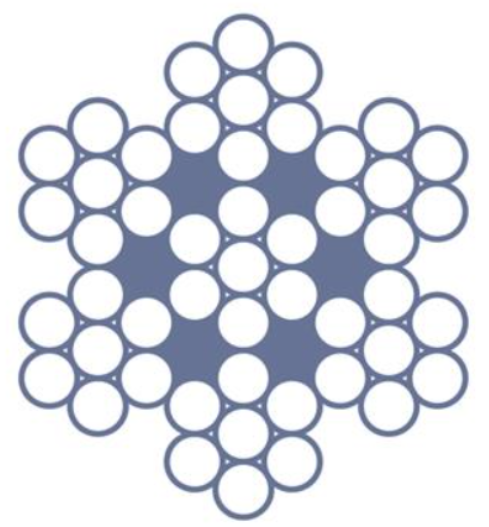

7×7 G304 Stainless Steel Wire Rope
7×7 G304 Stainless Steel Wire Rope
- Brand: Austlift
Our stainless steel 7x7 wire ropes have a semiflexible characteristic and is suitable for use as guard rails, hand rails, luff wires and struts. Available by the metre or reel.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Mid-range flexibility
- Corrosion resistant
- Metal fill factor 60.28%
- Manufactured from G304 stainless steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE METRIC | SIZE IMPERIAL | GRADE | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| AL803123 | 1.2mm | 3/64″ | 304 | 305m | 2.07kg |
| AL804123 | 1.2mm | 3/64″ | 316 | 305m | 2.07kg |
| AL803163 | 1.6mm | 1/16″ | 304 | 305m | 3.14kg |
| AL804163 | 1.6mm | 1/16″ | 316 | 305m | 3.14kg |
| AL804163L | 1.6mm | 1/16″ | 304 | 1000m | 11.30kg |
| AL803203 | 2.0mm | 5/64″ | 304 | 305m | 5.00kg |
| AL804203 | 2.0mm | 5/64″ | 316 | 305m | 5.00kg |
| AL803243 | 2.4mm | 3/32″ | 304 | 305m | 7.11kg |
| AL804243 | 2.4mm | 3/32″ | 316 | 305m | 7.11kg |
| AL803253 | 2.5mm | 3/32″ | 304 | 305m | 7.75kg |
| AL804253 | 2.5mm | 3/32″ | 316 | 305m | 7.75kg |
| AL803303 | 3.0mm | 1/8″ | 304 | 305m | 11.00kg |
| AL804303 | 3.0mm | 1/8″ | 316 | 305m | 11.00kg |
| AL803323 | 3.2mm | 1/8″ | 304 | 305m | 12.70kg |
| AL804323 | 3.2mm | 1/8″ | 316 | 305m | 12.70kg |
| AL803403 | 4.0mm | 5/32″ | 304 | 305m | 19.75kg |
| AL804403 | 4.0mm | 5/32″ | 316 | 305m | 19.75kg |
| AL804400 | 4.0mm | 5/32″ | 316 | 1000m | 65.00kg |
| AL803483 | 4.8mm | 3/16mm | 304 | 305m | 28.80kg |
| AL804503 | 5.0mm | – | 316 | 305m | 30.80kg |
| AL804603 | 6.0mm | 1/4″ | 316 | 305m | 44.2kg |
| AL803803 | 8.0mm | 5/16″ | 304 | 305m | 79.00kg |
| AL804803 | 8.0mm | 5/16″ | 316 | 305m | 79.00kg |
