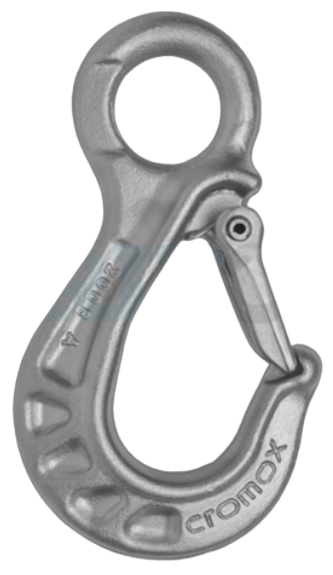

G60 Eye Sling Hook
G60 Eye Sling Hook
- Brand: Cromox
- Capacity: 0.90t to 3.85t
Featuring cast latch, this versatile and reliable stainless steel eye sling hook is suitable for most slinging applications. Providing easy chain connection and offering a 4:1 safety factor for chain slings, each hook is marked with chain size and batch number, with test certificates available upon request.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety latch
- Corrosion and rust resistant
- Safety factor of 4:1 for chain slings
- Manufactured from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCKW-COHF04 | 0.40t | 0.185kg |
| BCKW-COHF05/06 | 0.90t | 0.350kg |
| BCKW-COHF07/08 | 1.55t | 0.790kg |
| BCKW-COHF10 | 2.45t | 1.370kg |
| BCKW-COHF13 | 3.85t | 3.000kg |
| BCCOHF16 | 6.00t | 4.800kg |
| BCCOHF18 | 8.00t | 6.400kg |
Dimensions
| PRODUCT CODE | T | G | B | H |
|---|---|---|---|---|
| BCKW-COHF04 | 75mm | 20mm | 17mm | 17mm |
| BCKW-COHF05/06 | 100mm | 25mm | 25mm | 22mm |
| BCKW-COHF07/08 | 126mm | 32mm | 27mm | 28mm |
| BCKW-COHF10 | 160mm | 40mm | 37mm | 34mm |
| BCKW-COHF13 | 190mm | 51mm | 48mm | 45mm |
| BCCOHF16 | 230mm | 66mm | 55mm | 51mm |
| BCCOHF18 | 255mm | 70mm | 65mm | 56mm |
