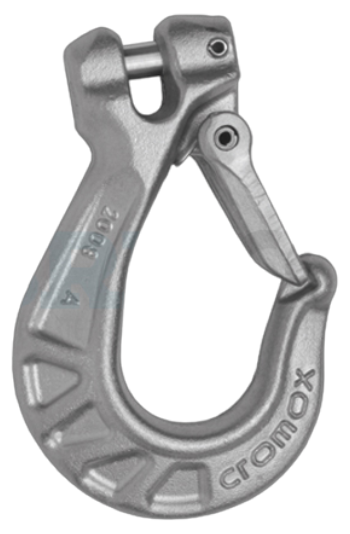

G60 Clevis Hook
G60 Clevis Hook
- Brand: Cromox
- Capacity: 0.63t to 5.0t
Featuring a cast latch, this versatile and reliable stainless steel clevis hook is ideal for a wide range of slinging applications. Providing easy chain connection and offering a 4 to 1 safety factor for chain slings, each hook is marked with chain size and batch number, with test certificates available upon request.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety latch
- Corrosion and rust resistant
- Safety factor of 4:1 for chain slings
- Manufactured from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCKW-CGHF05 | 0.63t | 0.400t |
| BCKWCGHF06 | 0.90t | 0.400t |
| BCKWCGHF07/08 | 1.55t | 0.760t |
| BCKWCGHF10 | 2.45t | 1.440t |
| BCKW-176613GB | 3.20t | 2.600t |
| BCKW-176616GB | 5.00t | 4.900t |
Dimensions
| PRODUCT CODE | T | G | H |
|---|---|---|---|
| BCKW-CGHF05 | 78mm | 25mm | 22mm |
| BCKWCGHF06 | 78mm | 25mm | 22mm |
| BCKWCGHF07/08 | 97mm | 32mm | 28mm |
| BCKWCGHF10 | 121mm | 40mm | 34mm |
| BCKW-176613GB | 143mm | 48mm | 47mm |
| BCKW-176616GB | 180mm | 69mm | 57mm |
