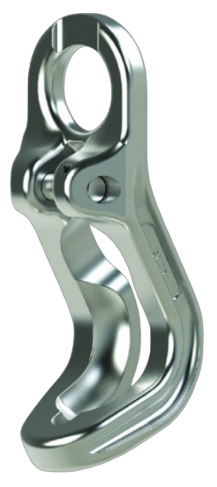

G60 Shortener
- Brand: Cromox
- Capacity: 0.4t to 8.0t
Providing verified fatigue strength via a combination of shortener, chain and load bearing chain link, this Grade 60 shortener delivers safe and reliable lifting. Designed for ease of use and prevention of incorrect usage, this shortener features a flat spot for maximum flexibility, a 4-fold safety mechanism to prevent breakage and is weight-optimised to ensure safety during lifting applications.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Corrosion and rust resistant
- 4 fold safety against breakage
- Manufactured from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | NET WEIGHT |
---|---|---|
BCCVE04 | 0.40t | 0.170kg |
BCCVE05 | 0.63t | 0.280kg |
BCCVE06 | 0.90t | 0.455kg |
BCCVE07 | 1.25t | 0.750kg |
BCCVE08 | 1.55t | 1.000kg |
BCCVE10 | 2.45t | 2.000kg |
BCCVE13 | 3.85t | 4.500kg |
BCCVE16 | 6.00t | 7.600kg |
BCCVE18 | 8.00t | 9.500kg |
Dimensions
PRODUCT CODE | D | T | A |
---|---|---|---|
BCCVE04 | 17mm | 74mm | 32mm |
BCCVE05 | 24mm | 93mm | 40mm |
BCCVE06 | 25mm | 112mm | 45mm |
BCCVE07 | 27mm | 131mm | 53mm |
BCCVE08 | 28mm | 148mm | 56mm |
BCCVE10 | 38mm | 187mm | 70mm |
BCCVE13 | 48mm | 243mm | 91mm |
BCCVE16 | 56mm | 299mm | 108mm |
BCCVE18 | 67mm | 336mm | 122mm |
