20t Round Sling
20t Round Sling
- Capacity: 20.0t

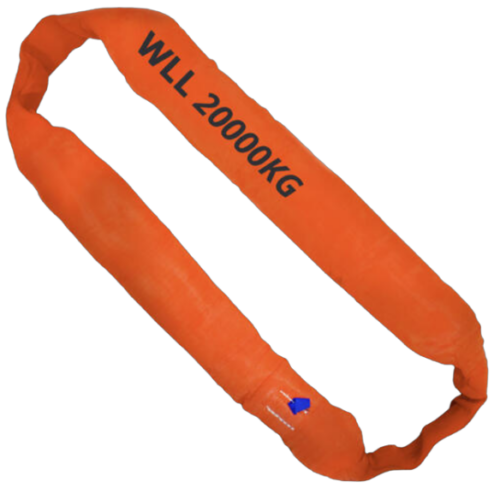

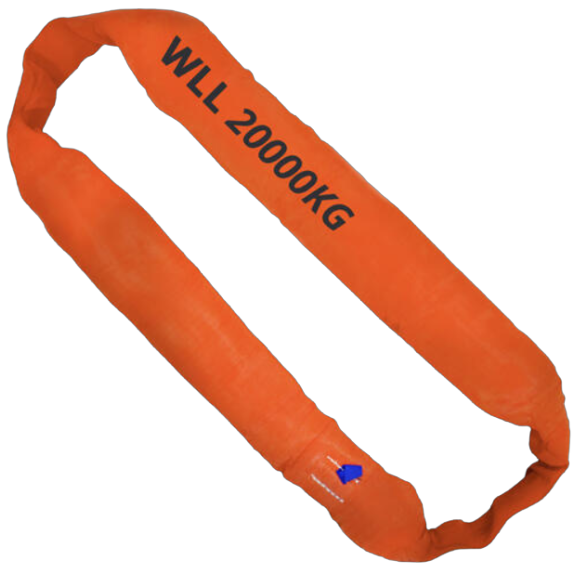

Strong and durable, our 20 tonne round slings are constructed from premium-grade, high tenacity polyester yarn and wound in a continuous hank to form an endless sling. The yarn hank is encapsulated in the non-load bearing tube to provide maximum wear protection. Each sling is manufactured to the highest standards and is individually proof tested, serial numbered, tagged and complete with test certificate.
- Australian Standard: AS4497
Features
Industries
Documents
Features
- Unique serial number
- Proof tested to 2 x W.L.L.
- Break load limit is 7 x the indicated load
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts
- Elevators
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | WIDTH | LENGTH | NET WEIGHT |
|---|---|---|---|---|
| AL902010 | 20t | 150mm | 1.0m | 5.00kg |
| AL902015 | 20t | 150mm | 1.5m | 7.80kg |
| AL902020 | 20t | 150mm | 2.0m | 10.50kg |
| AL902025 | 20t | 150mm | 2.5m | 11.00kg |
| AL902030 | 20t | 150mm | 3.0m | 15.00kg |
| AL902040 | 20t | 150mm | 4.0m | 23.00kg |
| AL902045 | 20t | 150mm | 4.5m | 23.62kg |
| AL902050 | 20t | 150mm | 5.0m | 26.25kg |
| AL902060 | 20t | 150mm | 6.0m | 31.50kg |
| AL902080 | 20t | 150mm | 8.0m | 42.00kg |
| AL902100 | 20t | 150mm | 10.0m | 52.50kg |
| AL902120 | 20t | 150mm | 12.0m | 63.00kg |
