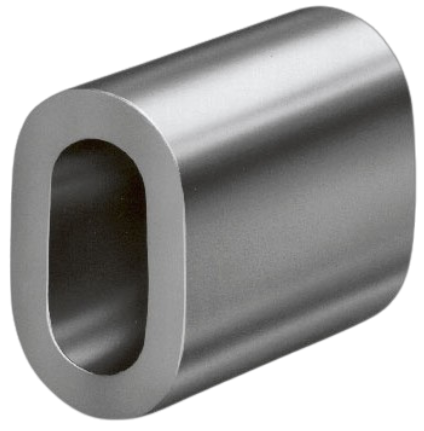

Aluminium Ferrules
Aluminium Ferrules
Our aluminium type ferrules are manufactured to EN standards and are mostly used for steel wire rope to form an eye for wire rope slings, winch cable etc.
Features
Industries
Documents
Features
- Burr free profile
- Corrosion resistant
- Manufactured from seamless aluminium
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | NET WEIGHT |
|---|---|---|
| AL303015 | 1.5mm | 0.211g |
| AL303020 | 2.0mm | 0.375g |
| AL303025 | 2.5mm | 0.499g |
| AL303030 | 3.0mm | 0.843g |
| AL303035 | 3.5mm | 1.320g |
| AL303040 | 4.0mm | 1.810g |
| AL303045 | 4.5mm | 2.610g |
| AL303050 | 5.0mm | 3.570g |
| AL303060 | 6.0mm | 5.860g |
| AL303065 | 6.5mm | 7.550g |
| AL303080 | 8.0mm | 13.700g |
| AL303090 | 9.0mm | 19.800g |
| AL303100 | 10.0mm | 26.400g |
| AL303110 | 11.0mm | 35.800g |
| AL303120 | 12.0mm | 45.800g |
| AL303130 | 13.0mm | 59.700g |
| AL303140 | 14.0mm | 73.500g |
| AL303160 | 16.0mm | 111.000g |
| AL303180 | 18.0mm | 156.000g |
| AL303200 | 20.0mm | 217.000g |
| AL303220 | 22.0mm | 292.000g |
| AL303240 | 24.0mm | 376.000g |
| AL303260 | 26.0mm | 481.000g |
| AL303280 | 28.0mm | 603.000g |
| AL303300 | 30.0mm | 739.000g |
| AL303320 | 32.0mm | 897.000g |
| AL303340 | 34.0mm | 1077.000g |
| AL303360 | 36.0mm | 1275.000g |
| AL303380 | 38.0mm | 1503.000g |
| AL303400 | 40.0mm | 1734.000g |
| AL303420 | 42.0mm | 2024.000g |
| AL303440 | 44.0mm | 2314.000g |
| AL303460 | 46.0mm | 2662.000g |
| AL303480 | 48.0mm | 3010.000g |
| AL303520 | 52.0mm | 3813.000g |
| AL303540 | 54.0mm | 4293.000g |
Dimensions
| PRODUCT CODE | A | B | S | L |
|---|---|---|---|---|
| AL303015 | 1.7mm | 3.4mm | 0.75mm | 6mm |
| AL303020 | 2.2mm | 4.4mm | 0.85mm | 7mm |
| AL303025 | 2.7mm | 5.4mm | 1.05mm | 9mm |
| AL303030 | 3.3mm | 6.6mm | 1.25mm | 11mm |
| AL303035 | 3.8mm | 7.6mm | 1.50mm | 13mm |
| AL303040 | 4.4mm | 8.8mm | 1.70mm | 14mm |
| AL303045 | 4.9mm | 9.8mm | 1.90mm | 16mm |
| AL303050 | 5.5mm | 11.0mm | 2.10mm | 18mm |
| AL303060 | 6.6mm | 13.2mm | 2.50mm | 21mm |
| AL303065 | 7.2mm | 14.4mm | 2.70mm | 23mm |
| AL303080 | 8.8mm | 17.6mm | 3.30mm | 28mm |
| AL303090 | 9.9mm | 19.8mm | 3.70mm | 32mm |
| AL303100 | 10.9mm | 21.8mm | 4.10mm | 35mm |
| AL303110 | 12.1mm | 24.2mm | 4.50mm | 39mm |
| AL303120 | 13.2mm | 26.4mm | 4.90mm | 42mm |
| AL303130 | 14.2mm | 28.4mm | 5.40mm | 46mm |
| AL303140 | 15.3mm | 30.6mm | 5.80mm | 49mm |
| AL303160 | 17.5mm | 35.0mm | 6.70mm | 56mm |
| AL303180 | 19.6mm | 39.2mm | 7.60mm | 63mm |
| AL303200 | 21.7mm | 43.4mm | 8.40mm | 70mm |
| AL303220 | 24.3mm | 48.6mm | 9.20mm | 77mm |
| AL303240 | 26.4mm | 52.8mm | 10.00mm | 84mm |
| AL303260 | 28.5mm | 57.0mm | 10.90mm | 91mm |
| AL303280 | 31.0mm | 62.0mm | 11.70mm | 98mm |
| AL303300 | 33.1mm | 66.2mm | 12.50mm | 105mm |
| AL303320 | 35.2mm | 70.4mm | 13.40mm | 112mm |
| AL303340 | 37.8mm | 75.6mm | 14.2mm | 119mm |
| AL303360 | 39.8mm | 79.6mm | 15.0mm | 126mm |
| AL303380 | 41.9mm | 83.8mm | 15.80mm | 133mm |
| AL303400 | 44.0mm | 88.0mm | 16.60mm | 140mm |
| AL303420 | 46.2mm | 92.4mm | 17.50mm | 147mm |
| AL303440 | 48.4mm | 96.8mm | 18.30mm | 154mm |
| AL303460 | 50.6mm | 101.2mm | 19.20mm | 161mm |
| AL303480 | 52.8mm | 105.6mm | 20.00mm | 168mm |
| AL303520 | 57.2mm | 114.0mm | 21.60mm | 182mm |
| AL303540 | 59.4mm | 118.0mm | 22.50mm | 189mm |
