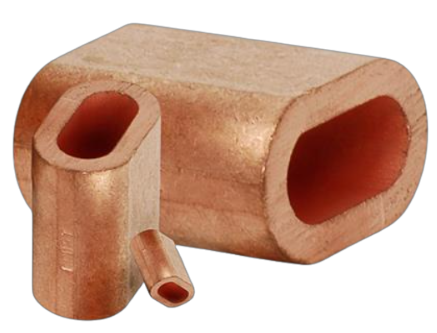

Copper Ferrules
Copper Ferrules
Ideal for use in highly corrosive environments, our copper ferrules are manufactured to EN standards and are mostly used with stainless steel wire rope to form an eye for wire rope slings, winch cable etc.
Features
Industries
Documents
Features
- Prevents galvanic corrosion
- Manufactured from seamless copper tubes
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | NET WEIGHT |
|---|---|---|
| AL304015 | 1.5mm | 0.4g |
| AL304020 | 2.0mm | 0.6g |
| AL304025 | 2.5mm | 0.8g |
| AL304030 | 3.0mm | 2.6g |
| AL304035 | 3.5mm | 4.4g |
| AL304040 | 4.0mm | 7.0g |
| AL304050 | 5.0mm | 11.8g |
| AL304060 | 6.0mm | 12.0g |
| AL304065 | 6.5mm | 25.0g |
| AL304080 | 8.0mm | 46.0g |
| AL304090 | 9.0mm | 80.0g |
| AL304100 | 10.0mm | 90.0g |
| AL304120 | 12.0mm | 150.0g |
| AL304140 | 14.0mm | 240.0g |
| AL304160 | 16.0mm | 374.0g |
Dimensions
| PRODUCT CODE | A | B | S | L |
|---|---|---|---|---|
| AL304015 | 1.8mm | 3.6mm | 1.05mm | 6mm |
| AL304020 | 2.4mm | 4.8mm | 0.85mm | 7mm |
| AL304025 | 2.7mm | 5.4mm | 1.10mm | 9mm |
| AL304030 | 3.3mm | 6.6mm | 1.35mm | 11mm |
| AL304035 | 3.9mm | 7.8mm | 1.60mm | 13mm |
| AL304040 | 4.3mm | 8.8mm | 1.70mm | 14mm |
| AL304050 | 5.6mm | 11.2mm | 2.10mm | 18mm |
| AL304060 | 6.7mm | 13.4mm | 2.50mm | 21mm |
| AL304065 | 6.9mm | 14.0mm | 2.70mm | 23mm |
| AL304080 | 8.5mm | 17.0mm | 3.50mm | 28mm |
| AL304090 | 9.9mm | 19.8mm | 3.70mm | 32mm |
| AL304100 | 10.9mm | 21.8mm | 4.10mm | 35mm |
| AL304120 | 13.2mm | 26.4mm | 4.90mm | 42mm |
| AL304140 | 15.3mm | 30.6mm | 5.80mm | 49mm |
| AL304160 | 17.5mm | 35.0mm | 6.70mm | 56mm |
