Copper Nickel Ferrules
- Brand: Austlift

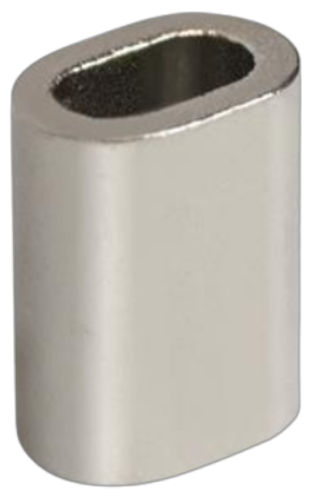

Our nickel plated copper type hand pressed ferrules are manufactured to EN standards, and are used stainless steel wire rope to form an eye for wire rope slings, balustrades etc.
Features
Industries
Documents
Features
- Burr free profile
- Hand press with use of a crimping tool
- Nickle plated finish for additional corrosion resistance
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | SIZE | NET WEIGHT |
---|---|---|
AL305015 | 1.5mm | 0.4g |
AL305020 | 2.0mm | 0.6g |
AL305025 | 2.5mm | 0.8g |
AL305030 | 3.0mm | 2.6g |
AL305035 | 3.5mm | 4.4g |
AL305040 | 4.0mm | 7.0g |
Dimensions
PRODUCT CODE | A | B | S | L |
---|---|---|---|---|
AL305015 | 1.80mm | 3.60mm | 1.05mm | 6.00mm |
AL305020 | 2.40mm | 4.80mm | 0.85mm | 7.00mm |
AL305025 | 2.70mm | 5.40mm | 1.10mm | 9.00mm |
AL305030 | 3.30mm | 6.60mm | 1.35mm | 11.00mm |
AL305035 | 3.90mm | 7.80mm | 1.60mm | 13.00mm |
AL305040 | 4.30mm | 8.80mm | 1.70mm | 14.00mm |
