AS Thimble
AS Thimble
- Capacity: 20.9mbf - 1710mbf

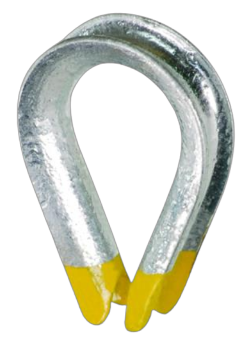

Robust and durable, our AS wire thimbles are ideal for use in rigging applications and prevent wire rope pinching and fraying at the eye.
Features
Industries
Documents
Features
- Hot dipped galvanised finish
- Manufactured from heat treated high tensile steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | MBF | NET WEIGHT |
|---|---|---|---|
| AL302506 | 6mm | 20.9kN | 0.040kg |
| AL302508 | 8mm | 40.2kN | 0.052kg |
| AL302510 | 10mm | 63.1kN | 0.080kg |
| AL302511 | 11mm | 76.3kN | 0.090kg |
| AL302512 | 12mm | 90.8kN | 0.130kg |
| AL302514 | 14mm | 124.0kN | 0.150kg |
| AL302516 | 16mm | 161.0kN | 0.260kg |
| AL302518 | 18mm | 204.0kN | 0.350kg |
| AL302519 | 19mm | 230.0kN | 0.400kg |
| AL302520 | 20mm | 252.0kN | 0.500kg |
| AL302522 | 22mm | 305.0kN | 0.620kg |
| AL302524 | 24mm | 363.0kN | 0.900kg |
| AL302526 | 26mm | 426.0kN | 1.000kg |
| AL302528 | 28mm | 494.0kN | 1.100kg |
| AL302532 | 32mm | 646.0kN | 1.300kg |
| AL302536 | 36mm | 817.0kN | 2.200kg |
| AL302540 | 40mm | 1010.0kN | 3.200kg |
| AL302544 | 44mm | 1220.0kN | 5.600kg |
| AL302548 | 48mm | 1450.0kN | 8.200kg |
| AL302552 | 52mm | 1710.0kN | 11.000kg |
Dimensions
| PRODUCT CODE | A | B | H | D |
|---|---|---|---|---|
| AL302506 | 4mm | 7.0mm | 25mm | 16mm |
| AL302508 | 5mm | 7.9mm | 33mm | 22mm |
| AL302510 | 5mm | 10.3mm | 38mm | 25mm |
| AL302511 | 6mm | 12.7mm | 41mm | 29mm |
| AL302512 | 6mm | 14.3mm | 44mm | 32mm |
| AL302514 | 7mm | 15.0mm | 46mm | 38mm |
| AL302516 | 8mm | 15.9mm | 59mm | 41mm |
| AL302518 | 8mm | 18.0mm | 65mm | 46mm |
| AL302519 | 9mm | 20.6mm | 73mm | 51mm |
| AL302520 | 10mm | 21.6mm | 75mm | 52mm |
| AL302522 | 10mm | 22.2mm | 83mm | 57mm |
| AL302524 | 11mm | 25.4mm | 92mm | 64mm |
| AL302526 | 11mm | 27.0mm | 111mm | 72mm |
| AL302528 | 12mm | 28.6mm | 111mm | 76mm |
| AL302532 | 14mm | 33.4mm | 133mm | 95mm |
| AL302536 | 16mm | 38.0mm | 152mm | 105mm |
| AL302540 | 18mm | 43.0mm | 165mm | 114mm |
| AL302544 | 20mm | 47.0mm | 178mm | 127mm |
| AL302548 | 22mm | 51.0mm | 190mm | 134mm |
| AL302552 | 22mm | 55.0mm | 203mm | 140mm |
