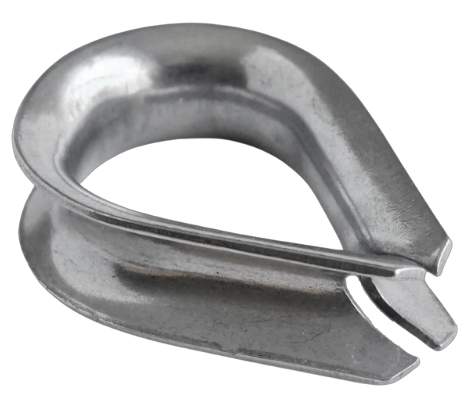

Zinc Plated Thimble
Zinc Plated Thimble
- Brand: Austlift
Our commercial zinc plated thimbles are ideal for light duty lifting applications, and are suitable for use with steel and fibre core wire rope.
Features
Industries
Documents
Features
- Zinc plated finish
- Corrosion resistance
- Manufactured from light gauge steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | NET WEIGHT |
|---|---|---|
| AL302004 | 3-4mm | 0.015kg |
| AL302005 | 5mm | 0.015kg |
| AL302006 | 6mm | 0.018kg |
| AL302008 | 8mm | 0.030kg |
| AL302010 | 10mm | 0.043kg |
| AL302012 | 12mm | 0.062kg |
| AL302016 | 16mm | 0.105kg |
| AL302020 | 20mm | 0.215kg |
| AL302022 | 22mm | 0.340kg |
| AL302025 | 25mm | 0.480kg |
Dimensions
| PRODUCT CODE | B | D | H |
|---|---|---|---|
| AL302004 | 4.00mm | 17.25mm | 32.75mm |
| AL302005 | 5.00mm | 17.25mm | 32.75mm |
| AL302006 | 7.00mm | 17.25mm | 32.75mm |
| AL302008 | 8.50mm | 20.25mm | 37.50mm |
| AL302010 | 10.25mm | 23.50mm | 40.75mm |
| AL302012 | 13.25mm | 28.25mm | 47.00mm |
| AL302016 | 16.50mm | 34.50mm | 56.25mm |
| AL302020 | 19.50mm | 40.75mm | 62.50mm |
| AL302022 | 23.50mm | 47.00mm | 87.50mm |
| AL302025 | 26.50mm | 62.50mm | 106.25mm |
