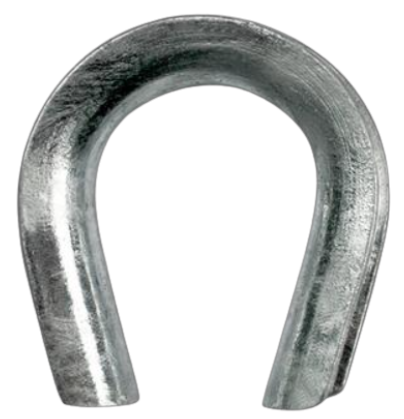

Open Thimble
- Brand: Austlift
Protect wire from deformation with our open type thimbles. Ideal for lifting purposes, these thimbles are for applications where a fitting may be placed into the thimble without opening the thimble and can be closed back to intended form.
Features
Industries
Documents
Features
- Hot dipped galvanised finish
- Manufactured from high tensile steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | SIZE | MBF | NET WEIGHT |
---|---|---|---|
AL302810 | 10mm | 63.1kN | 0.09kg |
AL302812 | 12mm | 90.8kN | 0.130kg |
AL302816 | 16mm | 161.0kN | 0.26kg |
AL302820 | 20mm | 252.0kN | 0.55kg |

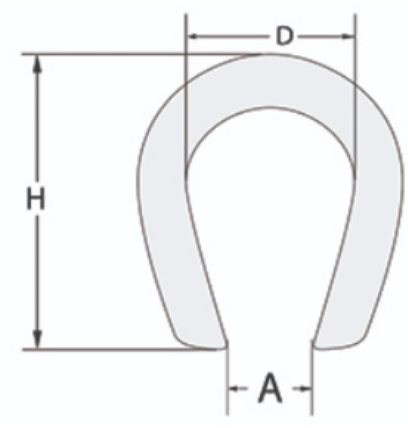

Dimensions
PRODUCT CODE | A | B | C | D | E |
---|---|---|---|---|---|
AL302810 | 21mm | 12mm | 30mm | 30mm | 60mm |
AL302812 | 21mm | 16mm | 37mm | 37mm | 65mm |
AL302816 | 25mm | 20mm | 50mm | 50mm | 88mm |
AL302820 | 25mm | 24mm | 60mm | 60mm | 90mm |
