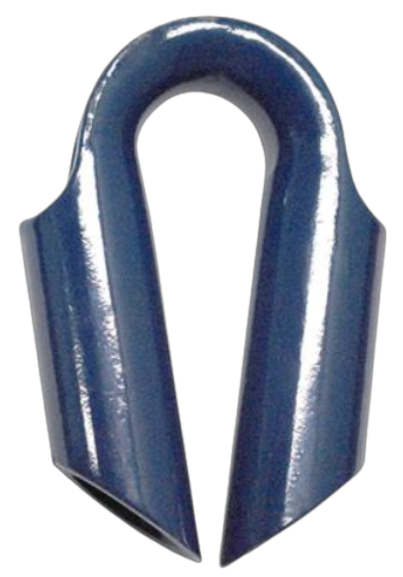

Semi-Closed Thimble
Semi-Closed Thimble
- Brand: Austlift
- Capacity: 63.1mbf to 1710.0mbf
Ideal for anchor wraps and permanent mooring wraps, this thimble is designed to provide superior strength and durability. Its semi-closed design ensures that rope remains securely in place, minimising the risk of slippage or damage, whilst protecting the rope from eye chafe.
Features
Industries
Documents
Features
- Corrosion resistant
- Strong and robust design
- Manufactured from mild steel, with blue powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | MBF | NET WEIGHT |
|---|---|---|---|
| AL302410 | 10mm | 63.1kN | 0.25kg |
| AL302412 | 12mm | 90.8kN | 0.42kg |
| AL302414 | 14mm | 124.0kN | 0.50kg |
| AL302416 | 16mm | 161.0kN | 0.60kg |
| AL302418 | 18mm | 204.0kN | 0.75kg |
| AL302422 | 22mm | 305.0kN | 1.40kg |
| AL302424 | 24mm | 363.0kN | 1.75kg |
| AL302426 | 26mm | 426.0kN | 2.00kg |
| AL302432 | 32mm | 646.0kN | 2.40kg |
| AL302438 | 38mm | 910.0kN | 3.30kg |
| AL302452 | 52mm | 1710.0kN | 5.50kg |

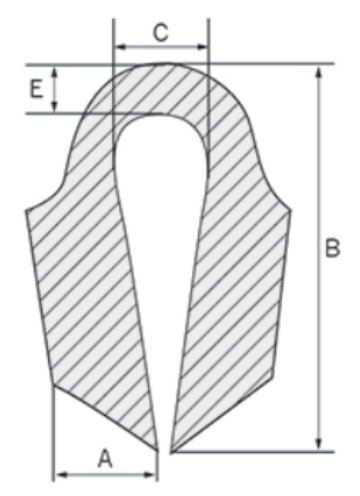

Dimensions
| PRODUCT CODE | A | B | C | D | E |
|---|---|---|---|---|---|
| AL302410 | 12mm | 90mm | 23mm | 4.0mm | 8mm |
| AL302412 | 15mm | 105mm | 27mm | 5.0mm | 10mm |
| AL302414 | 17mm | 115mm | 27mm | 4.0mm | 10mm |
| AL302416 | 19mm | 120mm | 32mm | 6.0mm | 12mm |
| AL302418 | 22mm | 140mm | 35mm | 6.3mm | 15mm |
| AL302422 | 25mm | 180mm | 45mm | 7.0mm | 16mm |
| AL302424 | 28mm | 180mm | 45mm | 7.0mm | 16mm |
| AL302426 | 30mm | 195mm | 47mm | 7.0mm | 18mm |
| AL302432 | 35mm | 215mm | 60mm | 7.0mm | 22mm |
| AL302438 | 45mm | 260mm | 70mm | 7.0mm | 27mm |
| AL302452 | 55mm | 298mm | 85mm | 7.0mm | 32mm |
