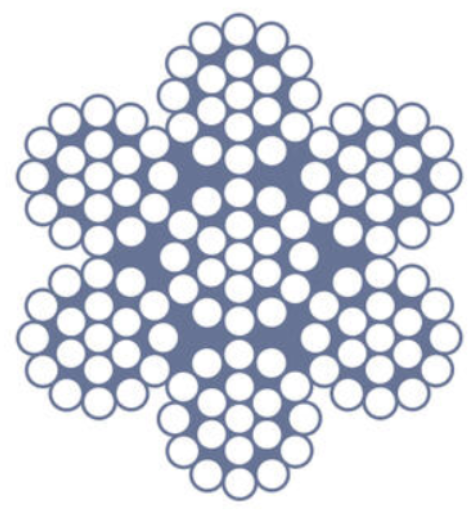

7×19 G316 Stainless Steel Wire Rope
7×19 G316 Stainless Steel Wire Rope
Our stainless steel 7x19 wire ropes have a flexible characteristic suitable for running rigging, fishing nets, slings and any other where flexible rope is required for the application. Available by the metre or reel.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Corrosion resistant
- Robust and flexible construction
- Manufactured from G316 stainless steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE METRIC | SIZE IMPERIAL | GRADE | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| AL807243 | 2.4mm | 3/32″ | 316 | 305m | 7.26kg |
| AL807303 | 3.0mm | 1/8″ | 316 | 305m | 11.00kg |
| AL807300 | 3.0mm | 1/8″ | 316 | 1000m | 35.00kg |
| AL807323 | 3.2mm | 1/8″ | 316 | 305m | 9.80kg |
| AL807403 | 4.0mm | 5/32″ | 316 | 305m | 20.00kg |
| AL807400 | 4.0mm | 5/32″ | 316 | 1000m | 62.00kg |
| AL807483 | 4.8mm | 3/16″ | 316 | 305m | 29.00kg |
| AL807503 | 5.0mm | 3/16″ | 316 | 305m | 30.00kg |
| AL807603 | 6.0mm | 1/4″ | 316 | 305m | 45.00kg |
| AL807803 | 8.0mm | 5/16″ | 316 | 305m | 76.35kg |
| AL807933 | 9.3mm | 11/32″ | 316 | 305m | 103.40kg |
| AL807950 | 10.0mm | 3/8″ | 316 | 305m | 120.00kg |
| AL807955 | 12.0mm | 1/2″ | 316 | 305m | 171.70kg |
| AL807965 | 14.0mm | 9/16″ | 316 | 305m | 234.00kg |
