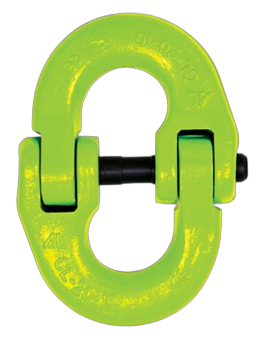

G100 Chain Connector
G100 Chain Connector
- Capacity: 1.4t o 19.0t
Our CL G100 chain connector (hammerlock) is a robust and reliable device designed to securely join chains in industrial applications (such as connecting master links and chain, chain and chain, chain and hook, and master link and hook). With its high load capacity and easy installation, it ensures efficient and safe operation in various lifting and rigging tasks
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- 25% higher working load limit than G80
- Die-forged halves, joined with a pin and stud
- Individual test certificates available upon request
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | SIZE | NET WEIGHT |
|---|---|---|---|
| AL170206 | 1.4t | 6mm | 0.10kg |
| AL170208 | 2.5t | 8mm | 0.22kg |
| AL170210 | 4.0t | 10mm | 0.45kg |
| AL170213 | 6.7t | 13mm | 1.15kg |
| AL170216 | 10.0t | 16mm | 1.75kg |
| AL170220 | 15.6t | 20mm | 2.70kg |
| AL170222 | 19.0t | 22mm | 4.02kg |
Dimensions
| PRODUCT CODE | B | K | D | L |
|---|---|---|---|---|
| AL170206 | 14.0mm | 44.5mm | 7.6mm | 60.0mm |
| AL170208 | 18.5mm | 61.5mm | 10.0mm | 84.5mm |
| AL170210 | 23.0mm | 72.0mm | 12.6mm | 97.2mm |
| AL170213 | 27.5mm | 89.0mm | 16.8mm | 127.0mm |
| AL170216 | 33.5mm | 103.0mm | 21.0mm | 145.0mm |
| AL170220 | 42.0mm | 116.0mm | 24.5mm | 175.0mm |
| AL170222 | 48.0mm | 135.0mm | 27.0mm | 193.0mm |
