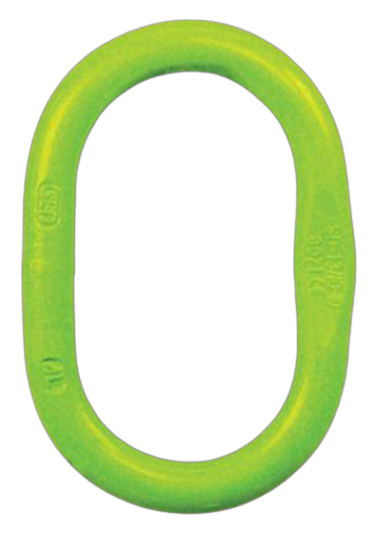

G100 Master Link
G100 Master Link
- Brand: Austlift
- Capacity: 0.4t to 7.2t
The SD type G100 master link head-rings are specifically engineered to accommodate both single leg and double leg chain slings or wire rope sling applications. With its flattened section, these head-rings offer versatile and universal connecting options.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- 25% higher working load limit that G80
- Individual test certificates available upon request
- Manufactured from G100 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. – 1 LEG | SIZE – 1 LEG | W.L.L – 2 LEG | SIZE – 2 LEG | NET WEIGHT |
|---|---|---|---|---|---|
| AL170008 | 2.5t | 8mm | 2.5t | 6mm | 0.4kg |
| AL170010 | 4.0t | 10mm | 4.3t | 8mm | 0.7kg |
| AL170013 | 6.7t | 13mm | 6.9t | 10mm | 1.5kg |
| AL170016 | 10.0t | 16mm | 11.6t | 13mm | 2.51kg |
| AL170020 | 16.0t | 20mm | 17.3t | 16mm | 5.10kg |
| AL170022 | 19.0t | 22mm | 27.7t | 20mm | 7.20kg |
Dimensions
| PRODUCT CODE | A | B | D |
|---|---|---|---|
| AL170008 | 120mm | 70mm | 13mm |
| AL170010 | 140mm | 80mm | 17mm |
| AL170013 | 160mm | 95mm | 22mm |
| AL170016 | 180mm | 100mm | 27mm |
| AL170020 | 240mm | 140mm | 32mm |
| AL170022 | 250mm | 150mm | 38mm |
