G100 Multi Link
G100 Multi Link
- Brand: Austlift
- Capacity: 3.5t to 21.0t

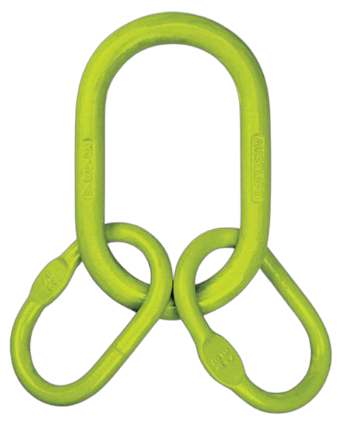

Our MD type G100 multi link rings feature a large central ring and two intermediate links, each with the same lifting capacity. Specifically designed to accommodate chain sling or wire rope sling applications with two, three, or four legs, these versatile multi head rings provide flexibility for a wide range of lifting configurations.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- 25% higher working load limit than G80
- Individual test certificates available upon request
- Manufactured from G100 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL170106 | 3.5t | 6mm | 1.8kg |
| AL170108 | 5.0t | 8mm | 3.0kg |
| AL170110 | 8.0t | 10mm | 6.5kg |
| AL170113 | 14.0t | 13mm | 15.0kg |
| AL170116 | 21.0t | 16mm | 23.0kg |
Dimensions
| PRODUCT CODE | B | C | D | B1 | C1 | D1 |
|---|---|---|---|---|---|---|
| AL170106 | 90mm | 150mm | 19mm | 70mm | 120mm | 14mm |
| AL170108 | 95mm | 160mm | 22mm | 80mm | 140mm | 17mm |
| AL170110 | 120mm | 200mm | 30mm | 95mm | 160mm | 22mm |
| AL170113 | 150mm | 250mm | 40mm | 110mm | 190mm | 25mm |
| AL170116 | 200mm | 300mm | 50mm | 120mm | 200mm | 32mm |
