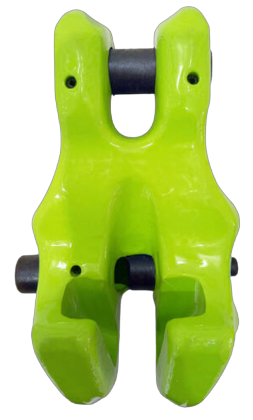

G100 Shortening Clutch Safety Pin
G100 Shortening Clutch Safety Pin
- Brand: Austlift
- Capacity: 4.0t to 10.0t
Our G100 shortening clutch with safety pin, provides the flexibility to shorten a chain sling. The safety pin ensures safe and reliable operation by preventing accidental disengagement of the clutch mechanism.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- 25% higher working load limit than G80
- Individual test certificates available upon request
- Manufactured from G100 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL171210 | 4.0t | 10mm | 0.75kg |
| AL171213 | 6.7t | 13mm | 6.70kg |
| AL171216 | 10.0t | 16mm | 10.00kg |
Dimensions
| PRODUCT CODE | A | B | C | D | M | N | Ø | L |
|---|---|---|---|---|---|---|---|---|
| AL171210 | 60mm | 11.7mm | 43mm | 11.7mm | 45.4mm | 26mm | 13.3mm | 115mm |
| AL171213 | 79mm | 15.0mm | 55mm | 15.0mm | 54.0mm | 34mm | 16.3mm | 149mm |
| AL171216 | 98mm | 19.0mm | 70mm | 19.0mm | 70.0mm | 40mm | 19.7mm | 184mm |
