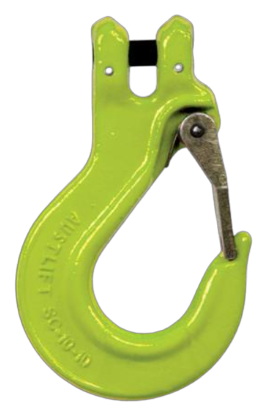

G100 Sling Hook Clevis w/Latch
G100 Sling Hook Clevis w/Latch
- Brand: Austlift
- Capacity: 1.4t to 19.0t
Our SC type G100 clevis sling hook is a versatile, general purpose hook designed for various sling applications. Featuring a cast latch for enhanced safety, this clevis hook allows effortless connection to chains, simplifying the setup process.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- 25% higher working load limit than G80
- Individual test certificates available upon request
- Manufactured from G100 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL170806 | 1.4t | 6mm | 0.33kg |
| AL170808 | 2.5t | 8mm | 0.70kg |
| AL170810 | 4.0t | 10mm | 1.3kg |
| AL170813 | 6.7t | 13mm | 2.3kg |
| AL170816 | 10.0t | 16mm | 3.6kg |
| AL170820 | 16.0t | 20mm | 7.3kg |
| AL170822 | 19.0t | 22mm | 12.1kg |
Dimensions
| PRODUCT CODE | A | B | E | H | M | L | L1 |
|---|---|---|---|---|---|---|---|
| AL170806 | 7.5mm | 32mm | 18.5mm | 21.0mm | 68.5mm | 109.0mm | 85mm |
| AL170808 | 9.5mm | 37mm | 25.0mm | 27.5mm | 88.0mm | 134.0mm | 94mm |
| AL170810 | 12.0mm | 48mm | 28.0mm | 33.5mm | 105.5mm | 161.5mm | 120mm |
| AL170813 | 15.0mm | 59mm | 38.0mm | 42.0mm | 134.0mm | 203.0mm | 145mm |
| AL170816 | 17.5mm | 70mm | 44.0mm | 50.0mm | 160.5mm | 248.0mm | 170mm |
| AL170820 | 25.0mm | 85mm | 52.0mm | 56.0mm | 190.5mm | 297.0mm | 216mm |
| AL170822 | 27.0mm | 100mm | 66.0mm | 62.0mm | 214.5mm | 326.0mm | 252mm |
