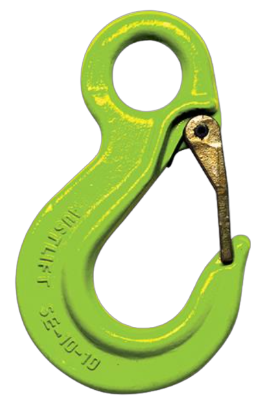

G100 Sling Hook Eye w/Latch
G100 Sling Hook Eye w/Latch
- Brand: Austlift
- Capacity: 1.4t to 16.0t
Our versatile SE type G100 eye sling hooks are designed for a wide range of sling applications. Equipped with a cast latch for enhanced safety, these hooks provide a secure connection whilst allowing effortless coupling with coup links and attachment to lifting apparatus.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- 25% higher working load limit than G80
- Individual test certificates available upon request
- Manufactured from G100 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL170906 | 1.4t | 6mm | 0.32kg |
| AL170908 | 2.5t | 8mm | 0.60kg |
| AL170910 | 4.0t | 10mm | 1.20kg |
| AL170913 | 6.7t | 13mm | 2.20kg |
| AL170916 | 10.0t | 16mm | 3.50kg |
| AL170920 | 16.0t | 20mm | 7.15kg |

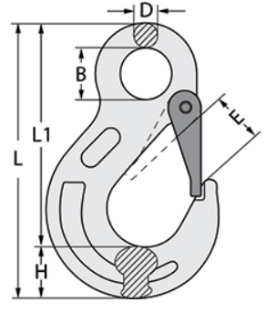

Dimensions
| PRODUCT CODE | B | D | E | H | L | L1 |
|---|---|---|---|---|---|---|
| AL170906 | 20.5mm | 10.0mm | 18.5mm | 21.0mm | 111.0mm | 80mm |
| AL170908 | 25.0mm | 11.0mm | 25.0mm | 27.5mm | 137.5mm | 99mm |
| AL170910 | 34.0mm | 16.0mm | 28.0mm | 33.0mm | 171.5mm | 106mm |
| AL170913 | 43.0mm | 19.0mm | 38.0mm | 43.5mm | 219.0mm | 156mm |
| AL170916 | 50.0mm | 24.5mm | 44.0mm | 50.0mm | 260.0mm | 186mm |
| AL170920 | 55.0mm | 27.0mm | 52.0mm | 56.0mm | 298.0mm | 215mm |
