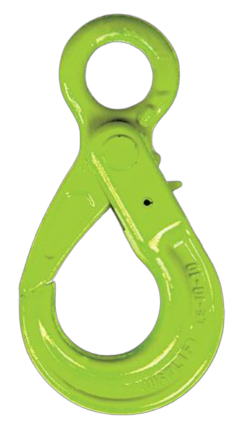

G100 Eye Safety Hook
- Capacity: 1.4t to 11.2t
Our LE type G100 eye self-locking hook offers convenient one-handed closure, automatically securing itself when the load is engaged. The hook remains closed until the trigger at the rear is pressed, ensuring optimal safety. The eye style design allows effortless connection to links, shackles and wire for versatile applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- 25% higher working load limit than G80
- Individual test certificate available upon request
- Manufacture from G100 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. LIFTING | SIZE | NET WEIGHT |
---|---|---|---|
AL170606 | 1.4t | 6mm | 0.5kg |
AL170608 | 2.5t | 8mm | 0.9kg |
AL170610 | 4.0t | 10mm | 1.5kg |
AL170613 | 6.7t | 13mm | 2.7kg |
AL170616 | 10.0t | 16mm | 5.7kg |
AL170620 | 16.0t | 20mm | 7.9kg |
AL170622 | 19.0t | 22mm | 11.2kg |

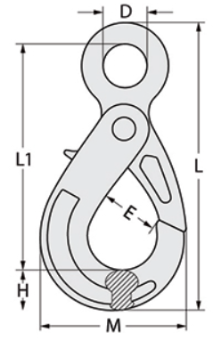

Dimensions
PRODUCT CODE | D | E | H | L | L1 | M |
---|---|---|---|---|---|---|
AL170606 | 21.0mm | 28.0mm | 20.0mm | 141.0mm | 110.0mm | 70.0mm |
AL170608 | 27.0mm | 35.5mm | 26.0mm | 175.0mm | 137.0mm | 90.0mm |
AL170610 | 34.5mm | 45.5mm | 30.0mm | 212.5mm | 169.0mm | 108.0mm |
AL170613 | 40.0mm | 53.5mm | 40.5mm | 270.0mm | 209.0mm | 138.5mm |
AL170616 | 50.0mm | 62.0mm | 50.5mm | 331.0mm | 254.0mm | 170.5mm |
AL170620 | 60.0mm | 76.5mm | 62.0mm | 369.0mm | 277.0mm | 192.5mm |
AL170622 | 70.0mm | 80.0mm | 66.0mm | 417.0mm | 319.5mm | 205.0mm |
