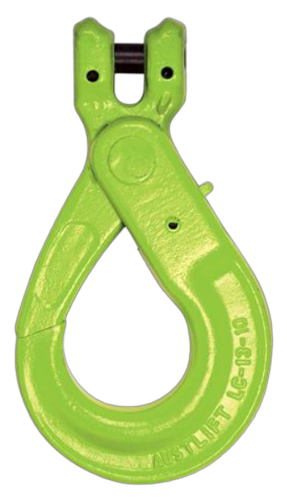

G100 Clevis Safety Hook
- Brand: Austlift
- Capacity: 1.4t to 19.0t
Our LC type G100 clevis self-locking hook provides convenient one-handed closure, automatically securing itself when the load is engaged. The hook remains closed until the trigger at the rear is pressed, ensuring reliable and safe operation. The clevis style enables effortless connection to the chain for seamless usability.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- 25% higher working load limit than G80
- Individual test certificates available upon request
- Manufactured from G100 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. LIFTING | SIZE | NET WEIGHT |
---|---|---|---|
AL170506 | 1.4t | 6mm | 0.5kg |
AL170508 | 2.5t | 8mm | 0.9kg |
AL170510 | 4.0t | 10mm | 1.6kg |
AL170513 | 6.7t | 13mm | 2.9kg |
AL170516 | 10.0t | 16mm | 5.8kg |
AL170520 | 16.0t | 20mm | 8.6kg |
AL170522 | 19.0t | 22mm | 12.1kg |
Dimensions
PRODUCT CODE | A | E | H | L | L1 | M |
---|---|---|---|---|---|---|
AL170506 | 7.5mm | 28.0mm | 20.0mm | 131.0mm | 96.0mm | 70.0mm |
AL170508 | 9.5mm | 35.5mm | 26.0mm | 166.0mm | 123.0mm | 90.0mm |
AL170510 | 12.0mm | 45.0mm | 30.0mm | 196.5mm | 144.0mm | 109.0mm |
AL170513 | 15.0mm | 53.5mm | 40.5mm | 251.0mm | 182.0mm | 138.5mm |
AL170516 | 17.5mm | 62.0mm | 50.5mm | 303.0mm | 217.0mm | 170.5mm |
AL170520 | 25.0mm | 76.5mm | 62.0mm | 337.5mm | 235.0mm | 192.5mm |
AL170522 | 25.5mm | 80.0mm | 66.0mm | 391.0mm | 276.5mm | 205.0mm |
