G80 Bolt On Point
G80 Bolt On Point
- Brand: Austlift
- Capacity: 1.0t to 8.0t

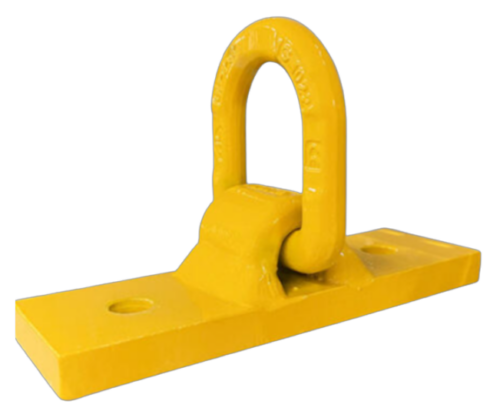

Ideal for heavy loads, our G80 bolt-on lifting point is a secure fixed anchor or lifting attachment point, that can be easily secured to an existing structure or piece of equipment to provide a reliable connection for lifting and rigging applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Two bolt on points
- Powder coated finish
- Manufactured from G80 alloy steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| AL103701 | 1t | 1.090kg |
| AL103703 | 3t | 1.560kg |
| AL103705 | 5t | 2.585kg |
| AL103708 | 8t | 4.920kg |

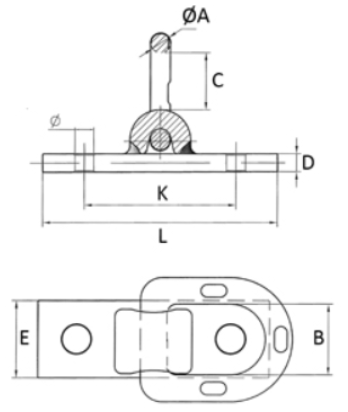

Dimensions
| PRODUCT CODE | A | B | C | D | E | Ø | L | K |
|---|---|---|---|---|---|---|---|---|
| AL103701 | 13.0mm | 41mm | 39mm | 12mm | 50mm | 12.5mm | 155mm | 100mm |
| AL103703 | 17.0mm | 45mm | 47mm | 16mm | 50mm | 16.5mm | 155mm | 100mm |
| AL103705 | 21.0mm | 55mm | 57mm | 20mm | 60mm | 22.5mm | 180mm | 120mm |
| AL103708 | 26.5mm | 70mm | 63mm | 26mm | 60mm | 26.5mm | 220mm | 145mm |
