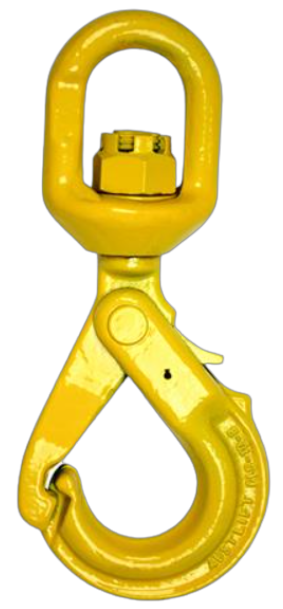

G80 Grip Safety Hook Swivel GLS
G80 Grip Safety Hook Swivel GLS
- Brand: Austlift
- Capacity: 2.0t to 5.3t
Our G80 GLS grip safety swivel hook is designed with a plain bush bearing swivel to allow the hook to reduce twist under load, whilst preventing side loading of the latch.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL102708 | 2.0t | 8mm | 0.97kg |
| AL102710 | 3.2t | 10mm | 1.83kg |
| AL102713 | 5.3t | 13mm | 3.30kg |
Dimensions
| PRODUCT CODE | A | B | C | D | N | M | L | L1 |
|---|---|---|---|---|---|---|---|---|
| AL102708 | 12.5mm | 40mm | 26mm | 35.5mm | 18.0mm | 83mm | 216mm | 182mm |
| AL102710 | 15.0mm | 50mm | 33mm | 42.0mm | 22.5mm | 101mm | 254mm | 213mm |
| AL102713 | 18.0mm | 60mm | 39mm | 50.0mm | 29.0mm | 121mm | 300mm | 252mm |
