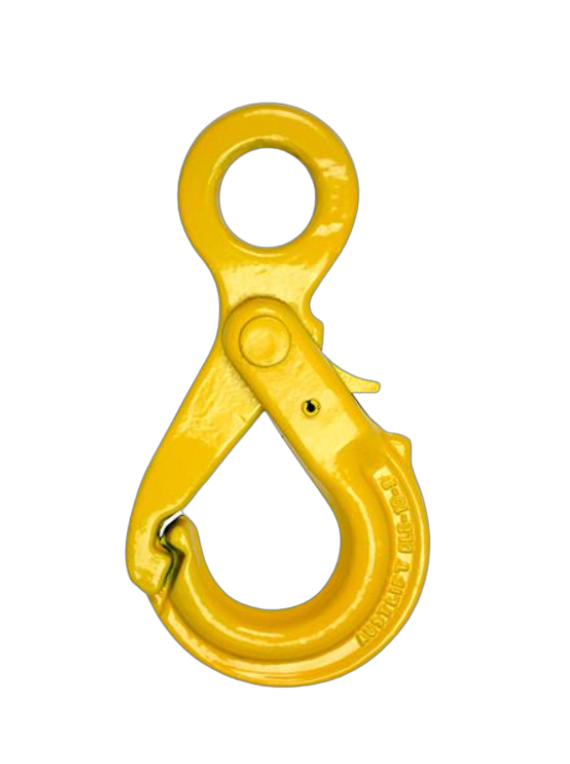

G80 Grip Safety Hook Eye GE
G80 Grip Safety Hook Eye GE
- Brand: Austlift
- Capacity: 2.0t to 8.0t
Our G80 grip safety eye hook ensures that the hook remains open until the load is engaged, only releasing when the trigger at the back is pressed. With its eye style design, it offers effortless connection to the chain whilst incorporating a unique design to prevent side loading of the latch.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL102608 | 2.0t | 8mm | 0.75kg |
| AL102610 | 3.2t | 10mm | 1.20kg |
| AL102613 | 5.3t | 13mm | 2.00kg |
| AL102616 | 8.0t | 16mm | 4.10kg |
Dimensions
| PRODUCT CODE | A | B | E | H | L | M | L1 |
|---|---|---|---|---|---|---|---|
| AL102608 | 25mm | 40mm | 34mm | 21.5mm | 163.0mm | 18.0mm | 131mm |
| AL102610 | 32mm | 50mm | 42mm | 26.5mm | 201.5mm | 22.5mm | 161mm |
| AL102613 | 40mm | 60mm | 50mm | 31.0mm | 243.5mm | 29.0mm | 195mm |
| AL102616 | 50mm | 70mm | 60mm | 39.5mm | 298.0mm | 35.0mm | 238mm |
