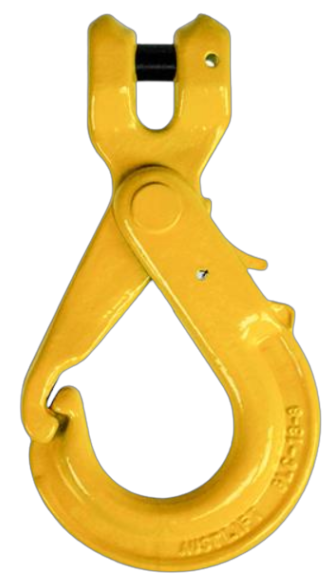

G80 Grip Safety Hook Clevis GC
- Brand: Austlift
- Capacity: 2.0t to 8.0t
The GLC type eye grip-locking hook ensures the hook remains open until the load is engaged, and that it remains closed until the trigger at the rear is pressed. The eye style design allows effortless chain connection and features a unique design to prevents side loading of the latch.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available on request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
---|---|---|---|
AL102508 | 2.0t | 8mm | 0.6kg |
AL102510 | 3.2t | 10mm | 1.1kg |
AL102513 | 5.3t | 13mm | 2.0kg |
AL102516 | 8.0t | 16mm | 4.2kg |
Dimensions
PRODUCT CODE | A | H | E | L | B | M | L1 |
---|---|---|---|---|---|---|---|
AL102508 | 9.5mm | 21.5mm | 34mm | 150mm | 40mm | 18.0mm | 111mm |
AL102510 | 12.0mm | 26.2mm | 44mm | 189mm | 50mm | 22.5mm | 139mm |
AL102513 | 15.0mm | 31.0mm | 54mm | 229mm | 60mm | 29.0mm | 168mm |
AL102516 | 18.5mm | 39.5mm | 63mm | 299mm | 72mm | 35.0mm | 238mm |
