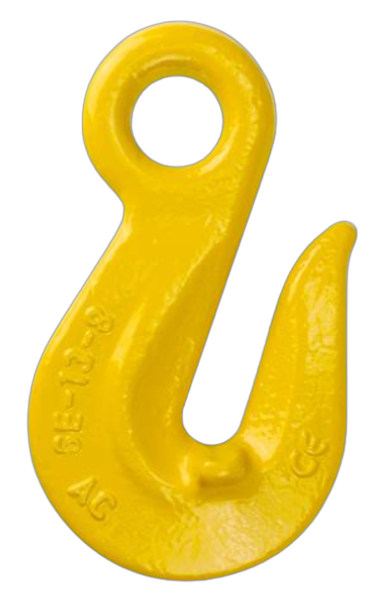

G80 Eye Grab Hook
G80 Eye Grab Hook
- Brand: Austlift
- Capacity: 1.12t to 31.5t
Our GE type grab hooks provide the flexibility to shorten chain slings and can be used for back-hooking. These hooks come equipped with supporting lugs as a standard feature, ensuring the working load limit remains unaffected. The eye design ensures effortless chain connection.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish.
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| EGHG080-06 | 1.12t | 6mm | 0.25kg |
| EGHG080-08 | 2.00t | 7/8mm | 0.40kg |
| EGHG080-10 | 3.15t | 10mm | 0.60kg |
| EGHG080-13 | 5.30t | 13mm | 1.20kg |
| EGHG080-16 | 8.00t | 16mm | 2.70kg |
| EGHG080-20 | 12.50t | 18/20mm | 4.30kg |
| EGHG080-22 | 15.00t | 22mm | 6.40kg |
| EGHG080-26 | 21.20t | 26mm | 10.70kg |
| EGHG080-32 | 31.50t | 32mm | 20.65kg |
Dimensions
| PRODUCT CODE | A | B | C | D | W | L |
|---|---|---|---|---|---|---|
| EGHG080-06 | 75mm | 8.0mm | 8.0mm | 13.0mm | 45mm | 50.0mm |
| EGHG080-08 | 106mm | 11.0mm | 9.5mm | 16.0mm | 63mm | 73.0mm |
| EGHG080-10 | 126mm | 13.0mm | 12.0mm | 20.0mm | 79mm | 84.5mm |
| EGHG080-13 | 156mm | 16.0mm | 15.0mm | 25.0mm | 100mm | 104.0mm |
| EGHG080-16 | 193mm | 20.0mm | 19.0mm | 28.5mm | 123mm | 130.0mm |
| EGHG080-20 | 227mm | 25.0mm | 23.0mm | 36.0mm | 152mm | 152.0mm |
| EGHG080-22 | 270mm | 26.0mm | 27.0mm | 46.0mm | 174mm | 186.0mm |
| EGHG080-26 | 305mm | 31.5mm | 34.0mm | 49.0mm | 181mm | 196.0mm |
| EGHG080-32 | 373mm | 41.0mm | 40.0mm | 65.0mm | 229mm | 246.0mm |
