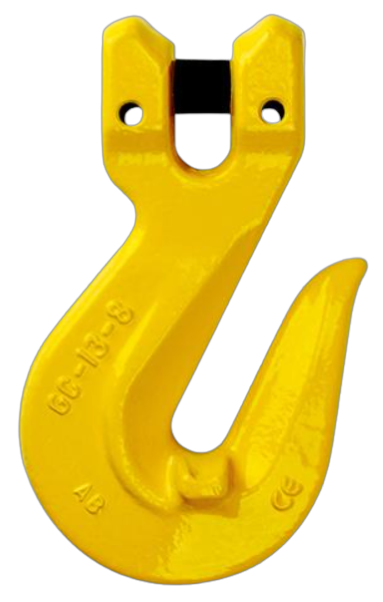

G80 Grab Hook Clevis GC
G80 Grab Hook Clevis GC
- Brand: Austlift
- Capacity: 1.12t to 14.50t
Our GC type clevis grab hooks provide the flexibility to shorten chain slings and can be used for back-hooking. These hooks come equipped with supporting lugs as a standard feature, ensuring the working load limit remains unaffected. The clevis is designed for effortless chain connection.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL101906 | 1.12t | 6mm | 0.23kg |
| AL101908 | 2.00t | 7/8mm | 0.32kg |
| AL101910 | 3.20t | 10mm | 0.73kg |
| AL101913 | 5.30t | 13mm | 1.50kg |
| AL101916 | 8.00t | 16mm | 2.80kg |
| AL101920 | 12.50t | 18/20mm | 5.00kg |
| AL101922 | 15.00t | 22mm | 6.30kg |
| AL101926 | 21.20t | 26mm | 14.50kg |

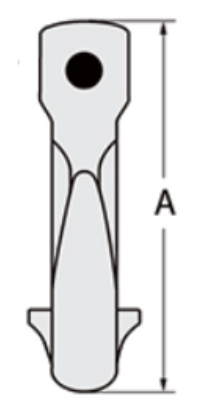

Dimensions
| PRODUCT CODE | A | B | C | D | W | L |
|---|---|---|---|---|---|---|
| AL101906 | 78mm | 8mm | 32mm | 7.5mm | 41mm | 46mm |
| AL101908 | 108mm | 11mm | 36mm | 9.0mm | 57mm | 66mm |
| AL101910 | 127mm | 13mm | 46mm | 12.0mm | 70mm | 74mm |
| AL101913 | 163mm | 16mm | 59mm | 15.0mm | 89mm | 97mm |
| AL101916 | 204mm | 20mm | 70mm | 17.5mm | 109mm | 124mm |
| AL101920 | 243mm | 23mm | 80mm | 23.0mm | 130mm | 150mm |
| AL101922 | 280mm | 26mm | 98mm | 25.5mm | 151mm | 170mm |
| AL101926 | 309mm | 30mm | 110mm | 30.0mm | 175mm | 168mm |
