G80 Safety Hook Swivel Clevis LT
G80 Safety Hook Swivel Clevis LT
- Brand: Austlift
- Capacity: 1.12t to 2.0t

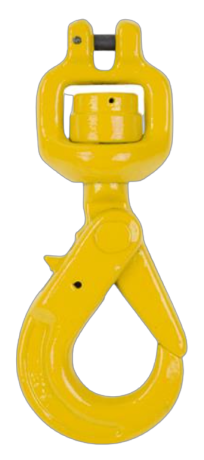

Our LT type swivel self-locking hook is a clevis-type hook fitted with a ball bearing, enabling the hook to swivel smoothly under load. The clevis design allows the chain to connect directly to the hook, resulting in a compact and user-friendly chain sling solution.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL103106 | 1.12t | 6mm | 0.73kg |
| AL103108 | 2.00t | 8mm | 1.3kg |
Dimensions
| PRODUCT CODE | B | C | D | E | L | L1 |
|---|---|---|---|---|---|---|
| AL103106 | 8.0mm | 32mm | 28mm | 34mm | 180mm | 139mm |
| AL103108 | 9.5mm | 37mm | 34mm | 46mm | 227.5mm | 189mm |
