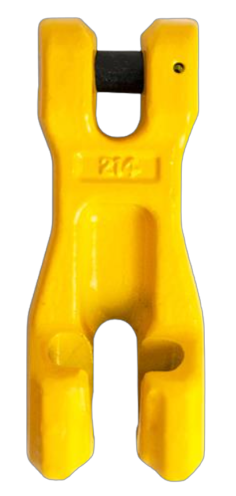

G80 Shortening Clutch Clevis CC
- Brand: Austlift
- Capacity: 1.12t to 15.0t
Our G80 lockable clevis shortening clutches have the advantage of shortening a chain sling without compromising the working load limit of the sling. With an easy to connect clevis, the clutch is simple to connect to chain. Not recommended for use as bottom fitting of sling for back-hooking and reeving applications.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
---|---|---|---|
AL102106 | 1.12t | 6mm | 0.17kg |
AL102108 | 2.00t | 7/8mm | 0.37kg |
AL102110 | 3.20t | 10mm | 0.97kg |
AL102113 | 5.30t | 13mm | 2.01kg |
AL102116 | 8.00t | 16mm | 3.32kg |
AL102120 | 12.50t | 18/20mm | 6.20kg |
AL102122 | 15.00t | 22mm | 8.50kg |

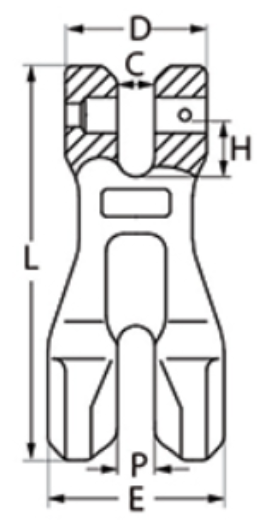

Dimensions
PRODUCT CODE | A | B | P | C | H | S | L | Ø | D | E |
---|---|---|---|---|---|---|---|---|---|---|
AL102106 | 8.0mm | 44.0mm | 7.5mm | 7.5mm | 10.3mm | 12.0mm | 73.5mm | 7.8mm | 30mm | 33mm |
AL102108 | 10.5mm | 61.7mm | 9.5mm | 9.5mm | 14.0mm | 17.0mm | 101.0mm | 9.2mm | 36mm | 45mm |
AL102110 | 12.4mm | 92.0mm | 13.0mm | 13.0mm | 18.4mm | 28.0mm | 138.0mm | 13.2mm | 48mm | 55mm |
AL102113 | 16.0mm | 115.0mm | 16.5mm | 16.5mm | 22.7mm | 34.5mm | 177.0mm | 16.2mm | 59mm | 75mm |
AL102116 | 19.5mm | 143.0mm | 21.0mm | 21.0mm | 28.5mm | 40.0mm | 220.0mm | 20.0mm | 73mm | 93mm |
AL102120 | 23.0mm | 152.0mm | 23.5mm | 23.5mm | 33.6mm | 46.0mm | 238.0mm | 24.3mm | 81mm | 102mm |
AL102122 | 26.0mm | 195.0mm | 25.5mm | 25.5mm | 39.0mm | 57.5mm | 295.0mm | 28.1mm | 98mm | 118mm |
