Grade ‘S’ Dee Shackle – Safety Pin
- Brand: Austlift
- Capacity: 2.0t to 55.0t
This heavy-duty grade 'S' dee shackle with safety pin provides a more permanent solution for connecting shackles to chain, wire rope and other rated fittings. Safe and versatile, this shackle is designed to withstand equipment vibrations, ensuring the safety pin remains securely in place during use, whilst allowing rotation of the safety pin during loading conditions.
- Australian Standard: AS2741
Features
Industries
Documents
Features
- Proof tested to 2 x W.L.L.
- Minimum break force of 6 x W.L.L.
- Manufactured from Grade S material
- Marked with grade quality, batch number, nominal size and W.L.L.
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Logistics
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL504006 | 0.50t | 6mm | 0.05kg |
| AL504008 | 0.75t | 8mm | 0.09kg |
| AL504010 | 1.00t | 10mm | 0.14kg |
| AL504011 | 1.50t | 11mm | 0.17kg |
| AL504013 | 2.00t | 13mm | 0.29kg |
| AL504016 | 3.20t | 16mm | 0.63kg |
| AL504019 | 4.70t | 19mm | 1.02kg |
| AL504022 | 6.50t | 22mm | 1.53kg |
| AL504025 | 8.50t | 25mm | 2.41kg |
| AL504029 | 9.50t | 29mm | 3.09kg |
| AL504032 | 12.0t | 32mm | 4.31kg |
| AL504035 | 13.5t | 35mm | 6.01kg |
| AL504038 | 17.0t | 38mm | 8.03kg |
| AL504044 | 25.0t | 44mm | 11.48kg |
| AL504051 | 35.0t | 51mm | 20.42kg |
| AL504057 | 42.5t | 57mm | 26.06kg |
| AL504063 | 55.0t | 63mm | 38.80kg |

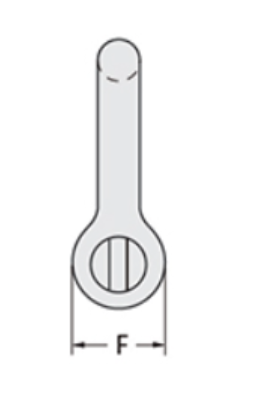

Dimensions
| PRODUCT CODE | W.L.L. | A | B | C | F | G |
|---|---|---|---|---|---|---|
| AL504006 | 0.50t | 12mm | 8mm | 6mm | 17mm | 22mm |
| AL504008 | 0.75t | 13mm | 10mm | 8mm | 21mm | 26mm |
| AL504010 | 1.00t | 17mm | 11mm | 10mm | 25mm | 32mm |
| AL504011 | 1.50t | 18mm | 13mm | 11mm | 27mm | 37mm |
| AL504013 | 2.00t | 21mm | 16mm | 13mm | 33mm | 41mm |
| AL504016 | 3.20t | 27mm | 19mm | 16mm | 40mm | 51mm |
| AL504019 | 4.70t | 32mm | 22mm | 19mm | 48mm | 60mm |
| AL504022 | 6.50t | 37mm | 25mm | 22mm | 54mm | 71mm |
| AL504025 | 8.50t | 43mm | 29mm | 25mm | 60mm | 81mm |
| AL504029 | 9.50t | 46mm | 32mm | 29mm | 67mm | 90mm |
| AL504032 | 12.0t | 52mm | 35mm | 32mm | 76mm | 100mm |
| AL504035 | 13.5t | 57mm | 38mm | 35mm | 84mm | 113mm |
| AL504038 | 17.0t | 60mm | 44mm | 38mm | 92mm | 124mm |
| AL504044 | 25.0t | 73mm | 51mm | 44mm | 110mm | 146mm |
| AL504051 | 35.0t | 83mm | 57mm | 51mm | 127mm | 171mm |
| AL504057 | 42.5t | 95mm | 63mm | 57mm | 143mm | 181mm |
| AL504063 | 55.0t | 105mm | 70mm | 63mm | 152mm | 203mm |
