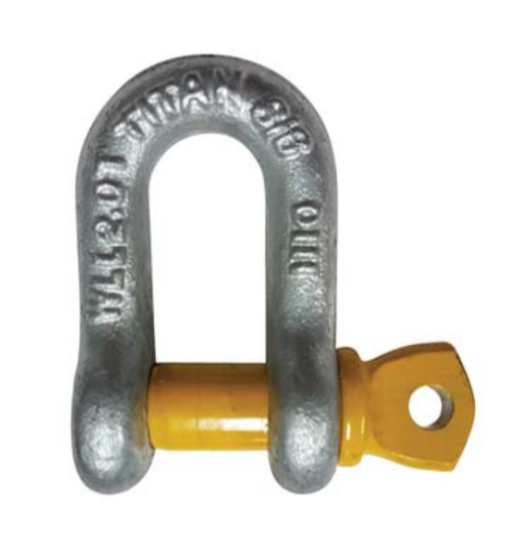

Grade ‘S’ Dee Shackle – Screw Pin
Grade ‘S’ Dee Shackle – Screw Pin
- Brand: Titan Lifting
- Capacity: 0.05t to 85.0t
With a high strength to weight ratio, our safe and reliable grade 'S' dee shackles with screw pin ensure a secure connection to chains, wire ropes and other rated fittings when lifting. Ideal in applications where side loading is present and with multi-leg sling assemblies.
- Australian Standard: AS2741
Features
Industries
Documents
Features
- Proof tested and load rated
- Hot dipped galvanised finish
- Test certificate available upon request
- Marked with W.L.L. and batch number
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Logistics
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLSSD005 | 0.50t | 6mm | 0.040kg |
| TLSSD0075 | 0.75t | 8mm | 0.076kg |
| TLSSD010 | 1.00t | 10mm | 0.140kg |
| TLSSD015 | 1.50t | 11mm | 0.180kg |
| TLSSD020 | 2.00t | 13mm | 0.280kg |
| TLSSD032 | 3.25t | 16mm | 0.540kg |
| TLSSD047 | 4.75t | 19mm | 0.900kg |
| TLSSD065 | 6.50t | 22mm | 1.400kg |
| TLSSD085 | 8.50t | 25mm | 2.100kg |
| TLSSD095 | 9.50t | 29mm | 2.900kg |
| TLSSD120 | 12.0t | 32mm | 4.000kg |
| TLSSD135 | 13.5t | 35mm | 5.400kg |
| TLSSD170 | 17.0t | 38mm | 7.000kg |
| TLSSD250 | 25.0t | 44mm | 11.800kg |
| TLSSD350 | 35.0t | 51mm | 17.00kg |
Dimensions
| PRODUCT CODE | D | W | L | E |
|---|---|---|---|---|
| TLSSD005 | 8mm | 12mm | 22mm | 17mm |
| TLSSD0075 | 10mm | 13mm | 26mm | 21mm |
| TLSSD010 | 11mm | 17mm | 32mm | 25mm |
| TLSSD015 | 13mm | 18mm | 37mm | 27mm |
| TLSSD020 | 16mm | 21mm | 41mm | 33mm |
| TLSSD032 | 19mm | 27mm | 51mm | 40mm |
| TLSSD047 | 22mm | 32mm | 60mm | 48mm |
| TLSSD065 | 25mm | 37mm | 71mm | 54mm |
| TLSSD085 | 29mm | 43mm | 81mm | 60mm |
| TLSSD095 | 32mm | 46mm | 90mm | 67mm |
| TLSSD120 | 35mm | 52mm | 100mm | 76mm |
| TLSSD135 | 38mm | 57mm | 113mm | 84mm |
| TLSSD170 | 41mm | 60mm | 124mm | 92mm |
| TLSSD250 | 51mm | 73mm | 146mm | 110mm |
| TLSSD350 | 57mm | 83mm | 171mm | 127mm |
