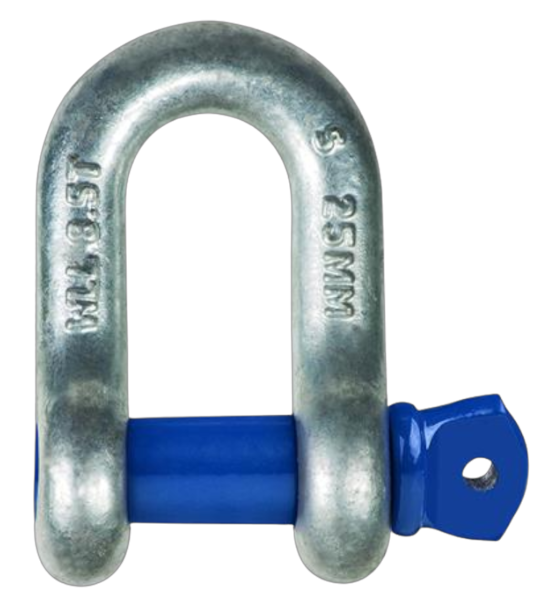

Grade ‘S’ Dee Shackle – Screw Pin
Grade ‘S’ Dee Shackle – Screw Pin
- Brand: Austlift
- Capacity: 0.5t to 55.0t
Versatile and efficient, our grade 'S' dee shackles with screw pin allows for quick attachment and detachment to chain, wire rope and other rated fittings. With a high strength to size ratio, this dee shackle is ideal for various lifting and rigging applications.
- Australian Standard: AS 2741
Features
Industries
Documents
Features
- Proof tested to 2 x W.L.L.
- Minimum break force of 6 x W.L.L.
- Manufactured from Grade S material
- Marked with grade quality, batch number, nominal size and W.L.L.
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Logistics
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL504006 | 0.50t | 6mm | 0.05kg |
| AL504008 | 0.75t | 8mm | 0.09kg |
| AL504010 | 1.00t | 10mm | 0.14kg |
| AL504011 | 1.50t | 11mm | 0.17kg |
| AL504013 | 2.00t | 13mm | 0.29kg |
| AL504016 | 3.20t | 16mm | 0.63kg |
| AL504019 | 4.70t | 19mm | 1.02kg |
| AL504022 | 6.50t | 22mm | 1.53kg |
| AL504025 | 8.50t | 25mm | 2.41kg |
| AL504029 | 9.50t | 29mm | 3.09kg |
| AL504032 | 12.0t | 32mm | 4.31kg |
| AL504035 | 13.5t | 35mm | 6.01kg |
| AL504038 | 17.0t | 38mm | 8.03kg |
| AL504044 | 25.0t | 44mm | 11.48kg |
| AL504051 | 35.0t | 51mm | 20.42kg |
| AL504057 | 42.5t | 57mm | 26.06kg |
| AL504063 | 55.0t | 63mm | 38.80kg |

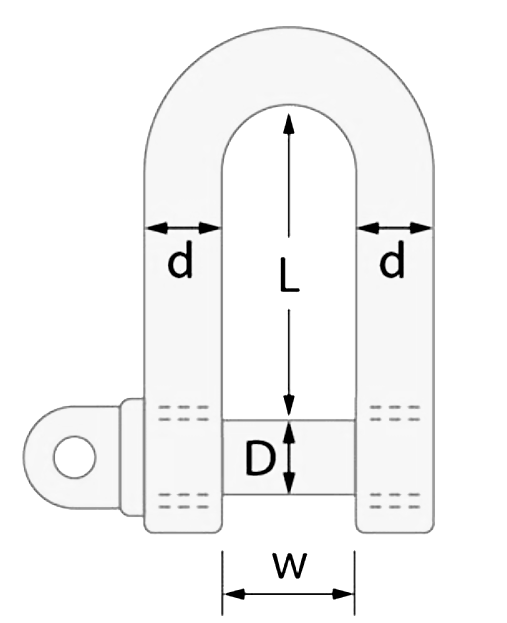

Dimensions
| PRODUCT CODE | W.L.L. | A | B | C | F | G |
|---|---|---|---|---|---|---|
| AL504006 | 0.50t | 12mm | 8mm | 6mm | 17mm | 22mm |
| AL504008 | 0.75t | 13mm | 10mm | 8mm | 21mm | 26mm |
| AL504010 | 1.00t | 17mm | 11mm | 10mm | 25mm | 32mm |
| AL504011 | 1.50t | 18mm | 13mm | 11mm | 27mm | 37mm |
| AL504013 | 2.00t | 21mm | 16mm | 13mm | 33mm | 41mm |
| AL504016 | 3.20t | 27mm | 19mm | 16mm | 40mm | 51mm |
| AL504019 | 4.70t | 32mm | 22mm | 19mm | 48mm | 60mm |
| AL504022 | 6.50t | 37mm | 25mm | 22mm | 54mm | 71mm |
| AL504025 | 8.50t | 43mm | 29mm | 25mm | 60mm | 81mm |
| AL504029 | 9.50t | 46mm | 32mm | 29mm | 67mm | 90mm |
| AL504032 | 12.0t | 52mm | 35mm | 32mm | 76mm | 100mm |
| AL504035 | 13.5t | 57mm | 38mm | 35mm | 84mm | 113mm |
| AL504038 | 17.0t | 60mm | 44mm | 38mm | 92mm | 124mm |
| AL504044 | 25.0t | 73mm | 51mm | 44mm | 110mm | 146mm |
| AL504051 | 35.0t | 83mm | 57mm | 51mm | 127mm | 171mm |
| AL504057 | 42.5t | 95mm | 63mm | 57mm | 143mm | 181mm |
